Garage Door Opener - Sheet 2E
Garage Door Opener - Sheet 2E

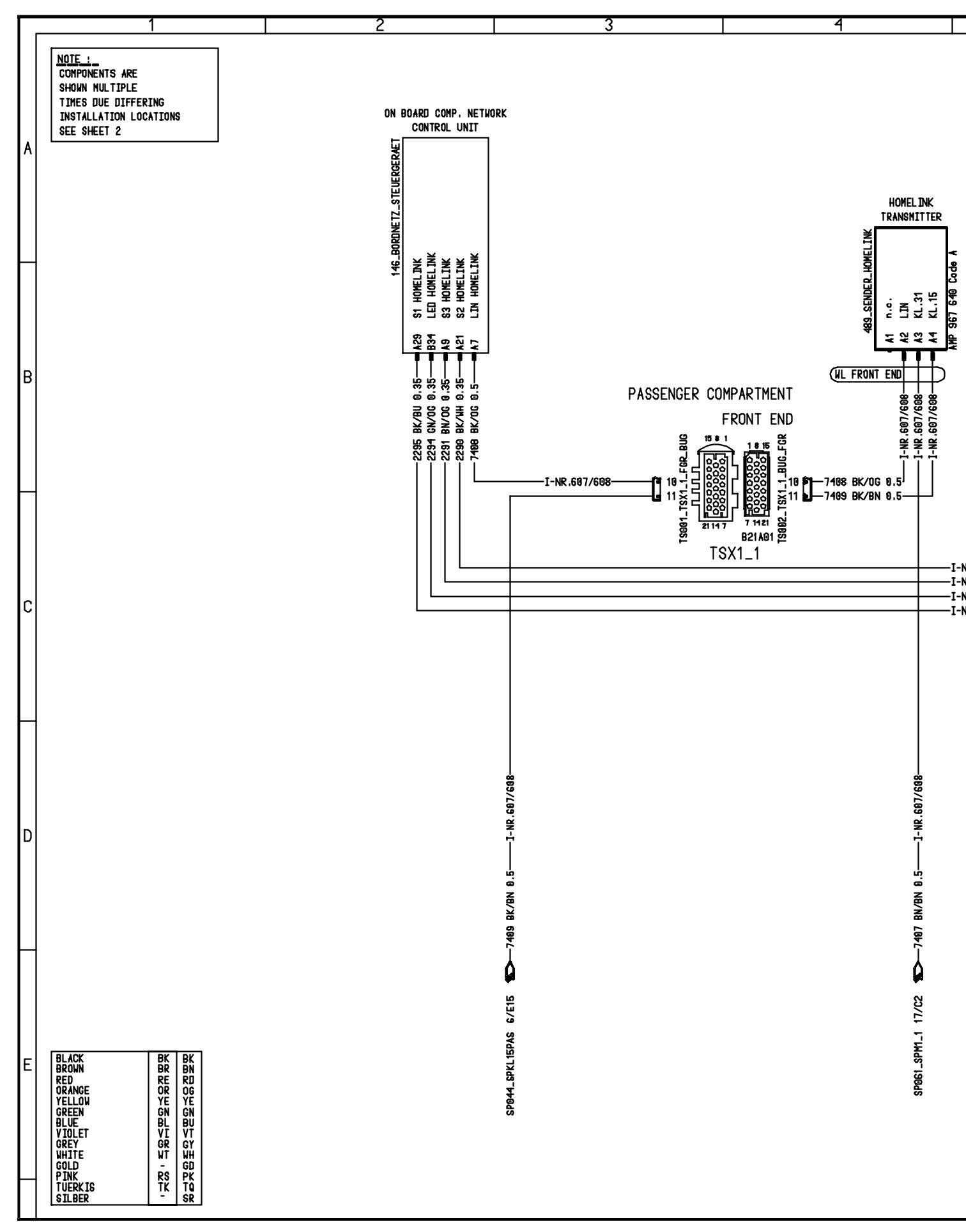

Garage Door Opener - Sheet 2E (Part 1):

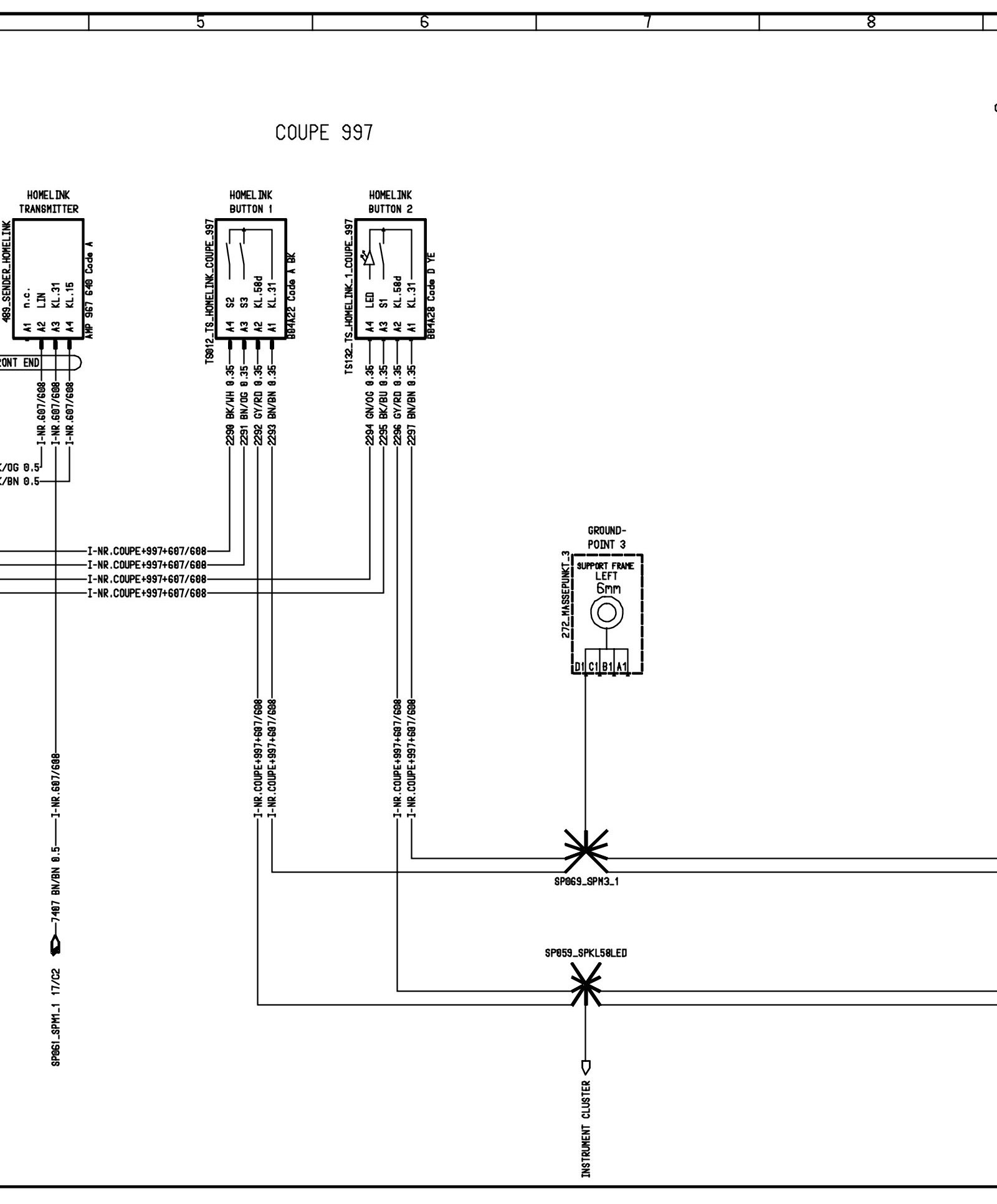

Garage Door Opener - Sheet 2E (Part 2):

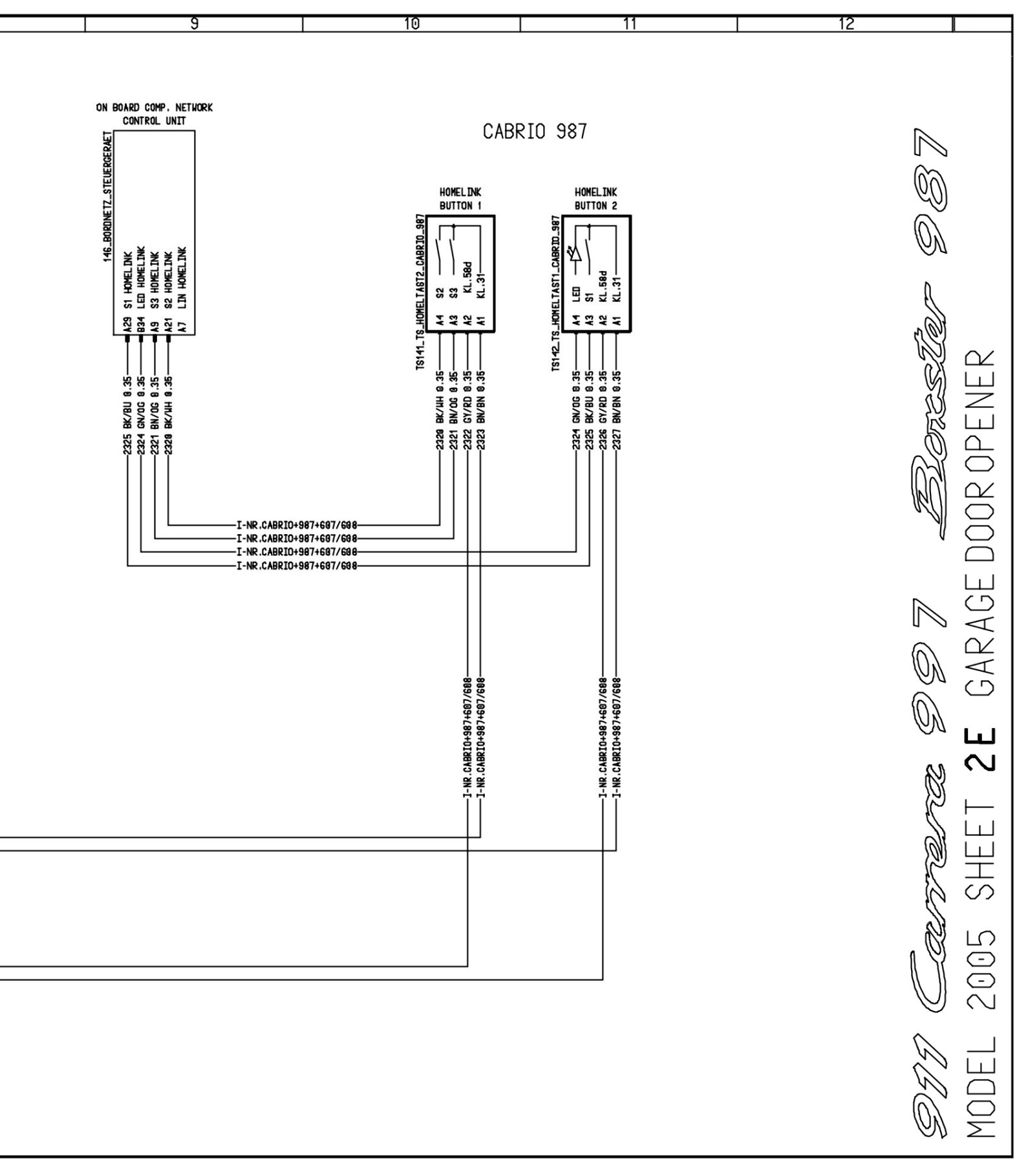

Garage Door Opener - Sheet 2E (Part 3):
