Fan / Tank - Sheet 18C
Fan / Tank - Sheet 18C

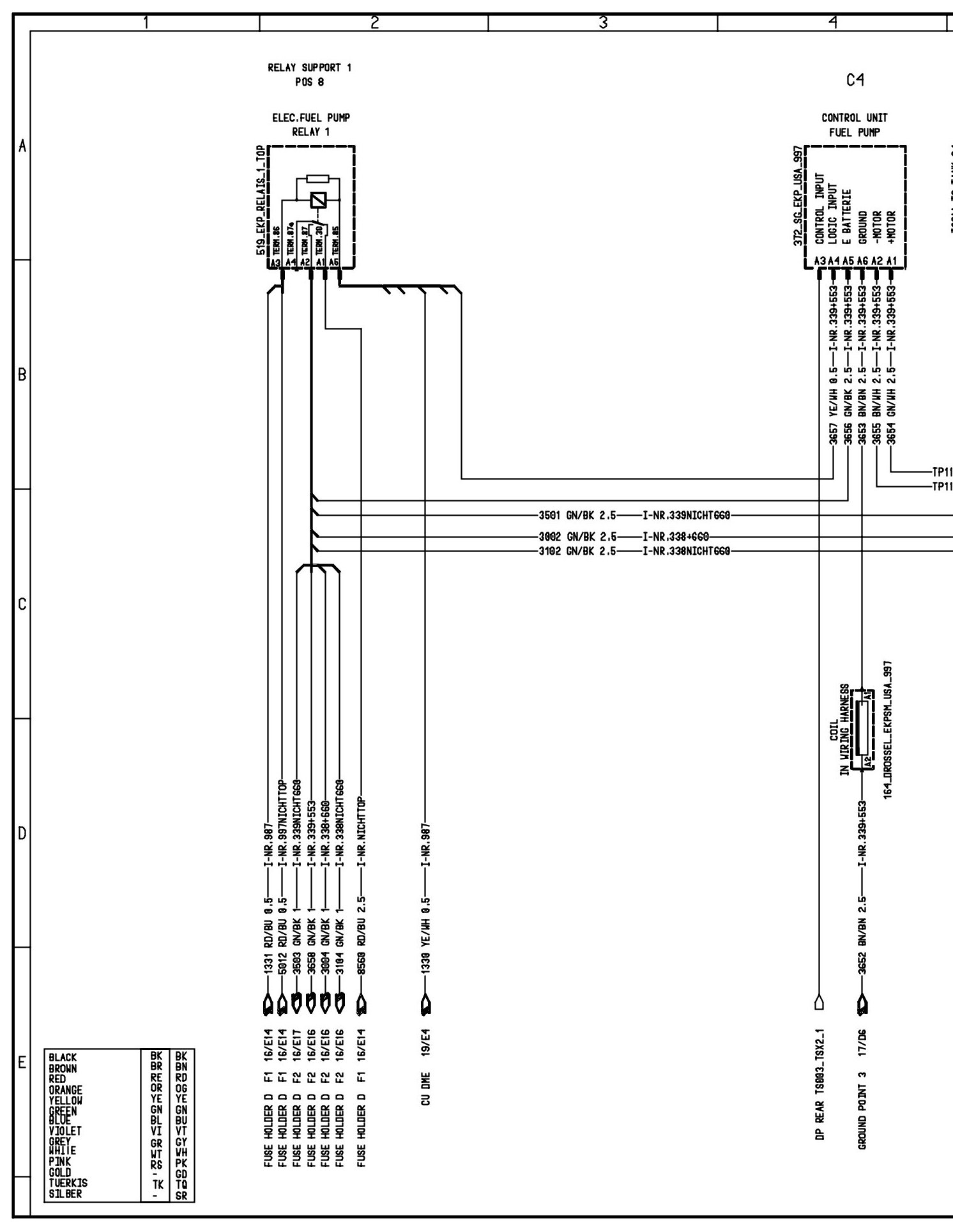

Fan / Tank - Sheet 18C (Part 1):

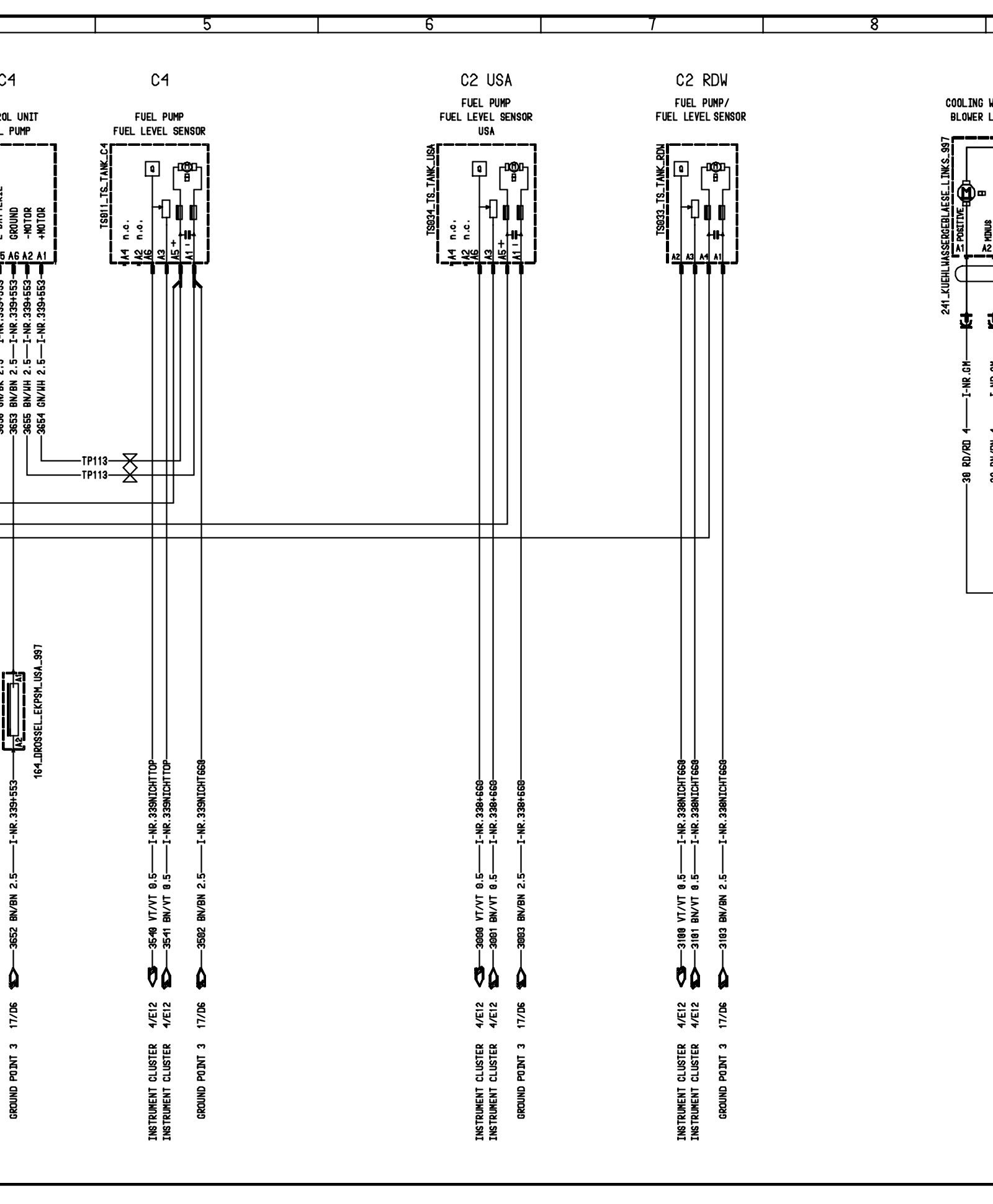

Fan / Tank - Sheet 18C (Part 2):

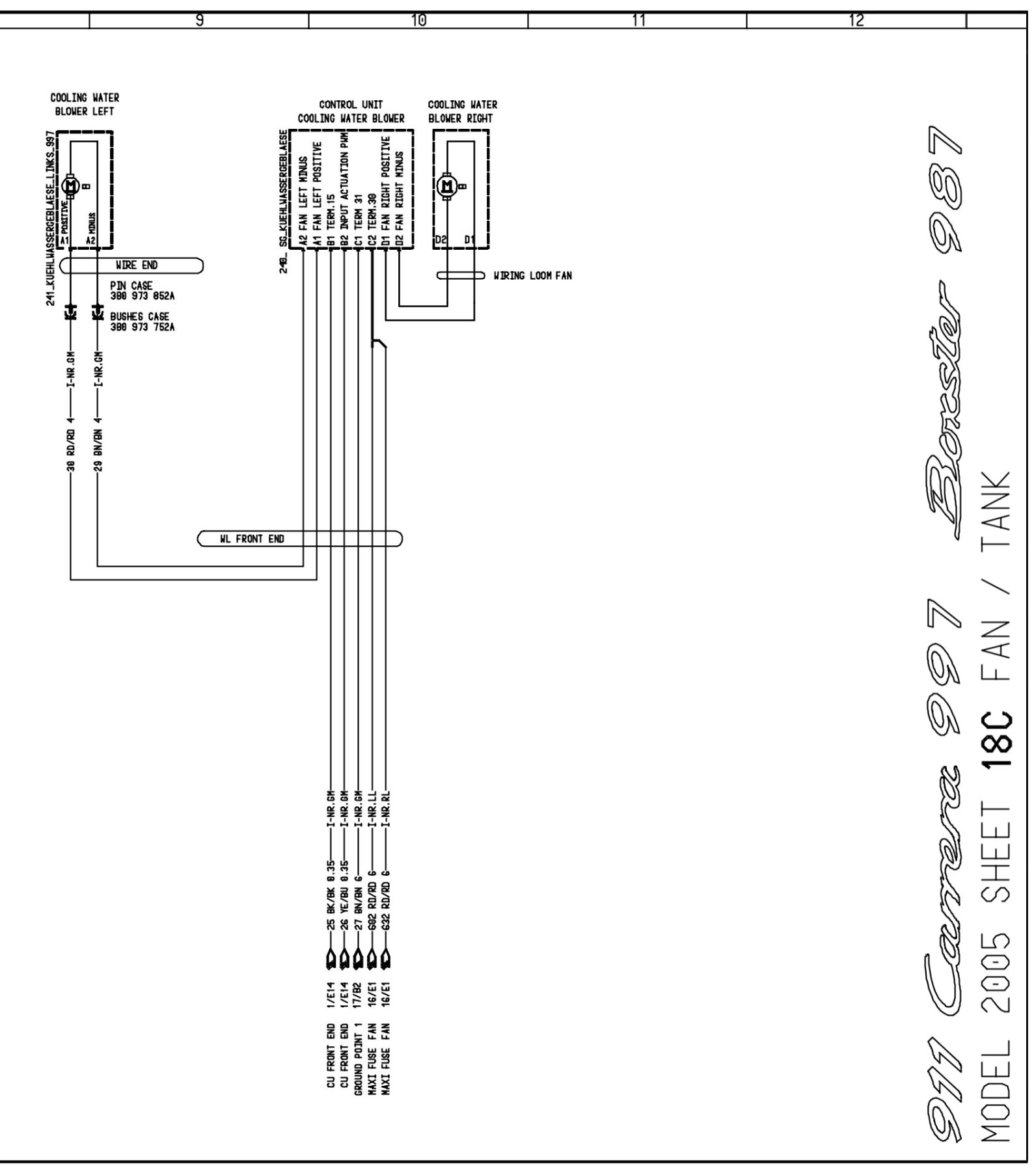

Fan / Tank - Sheet 18C (Part 3):
