CD-Changer - Sheet 23
CD-Changer - Sheet 23

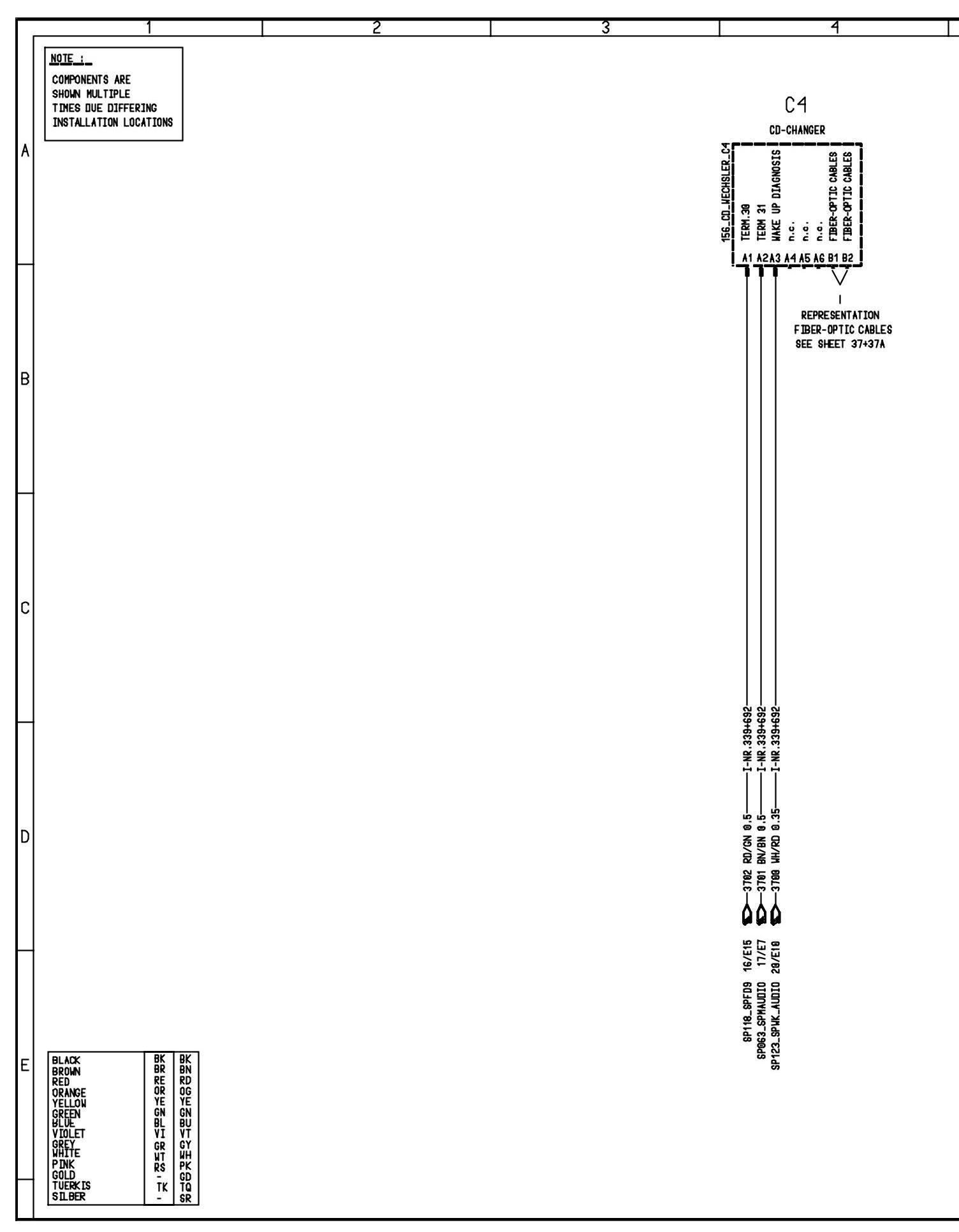

CD-Changer - Sheet 23 (Part 1):

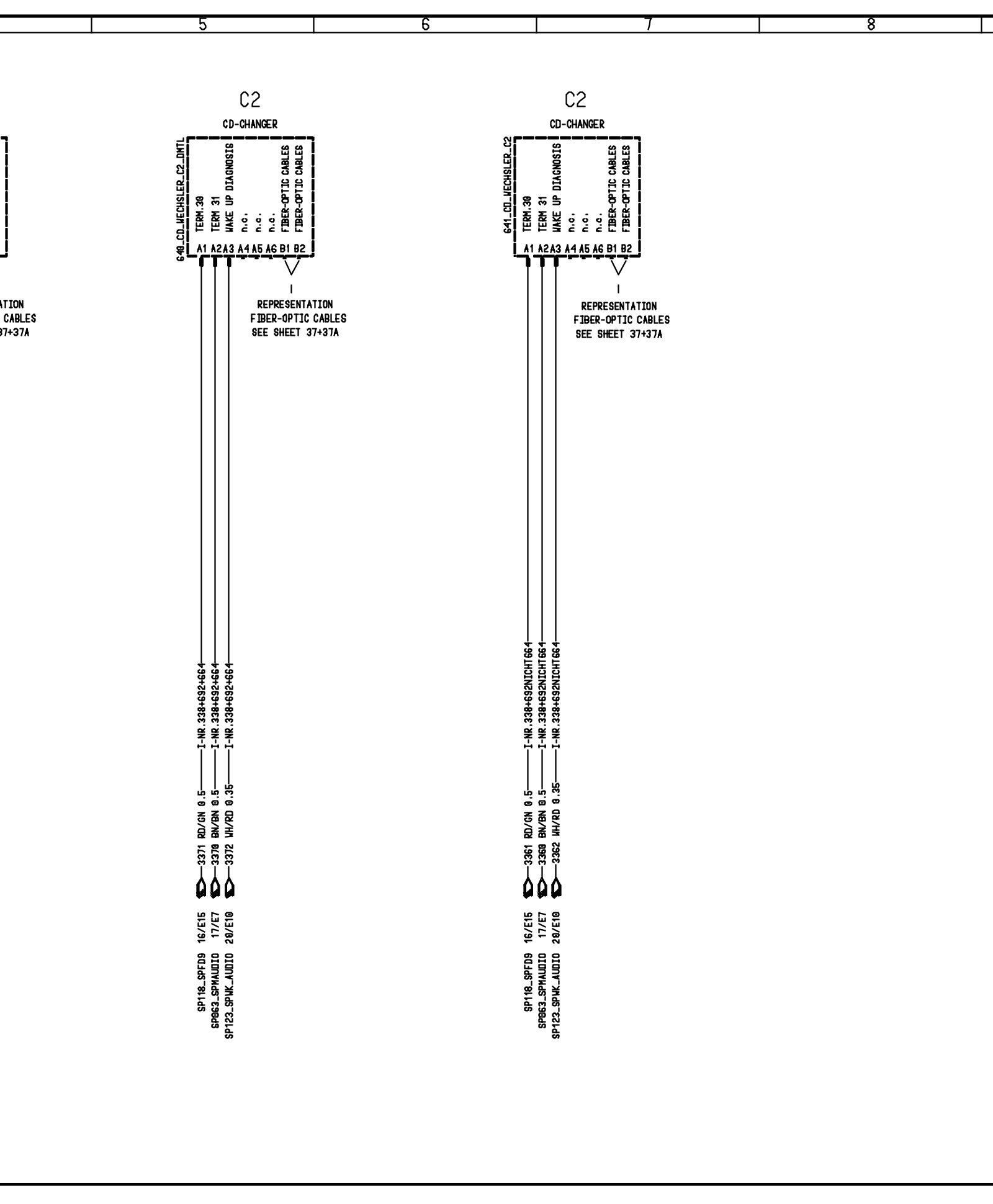

CD-Changer - Sheet 23 (Part 2):
CD-Changer - Sheet 23 (Part 3):
