Advanced Airbag - Sheet 10B
Advanced Airbag - Sheet 10B

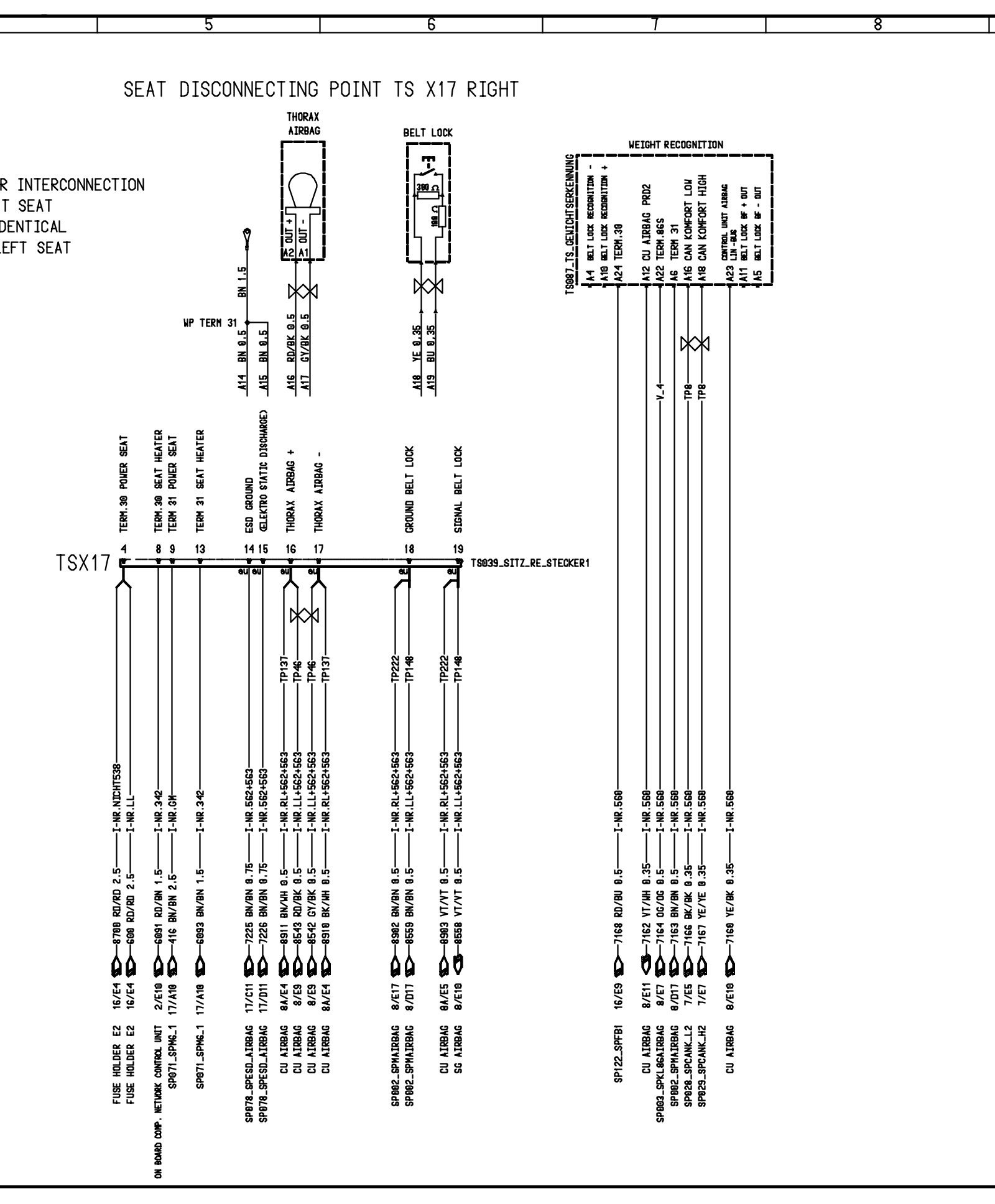

Advanced Airbag - Sheet 10B (Part 1):

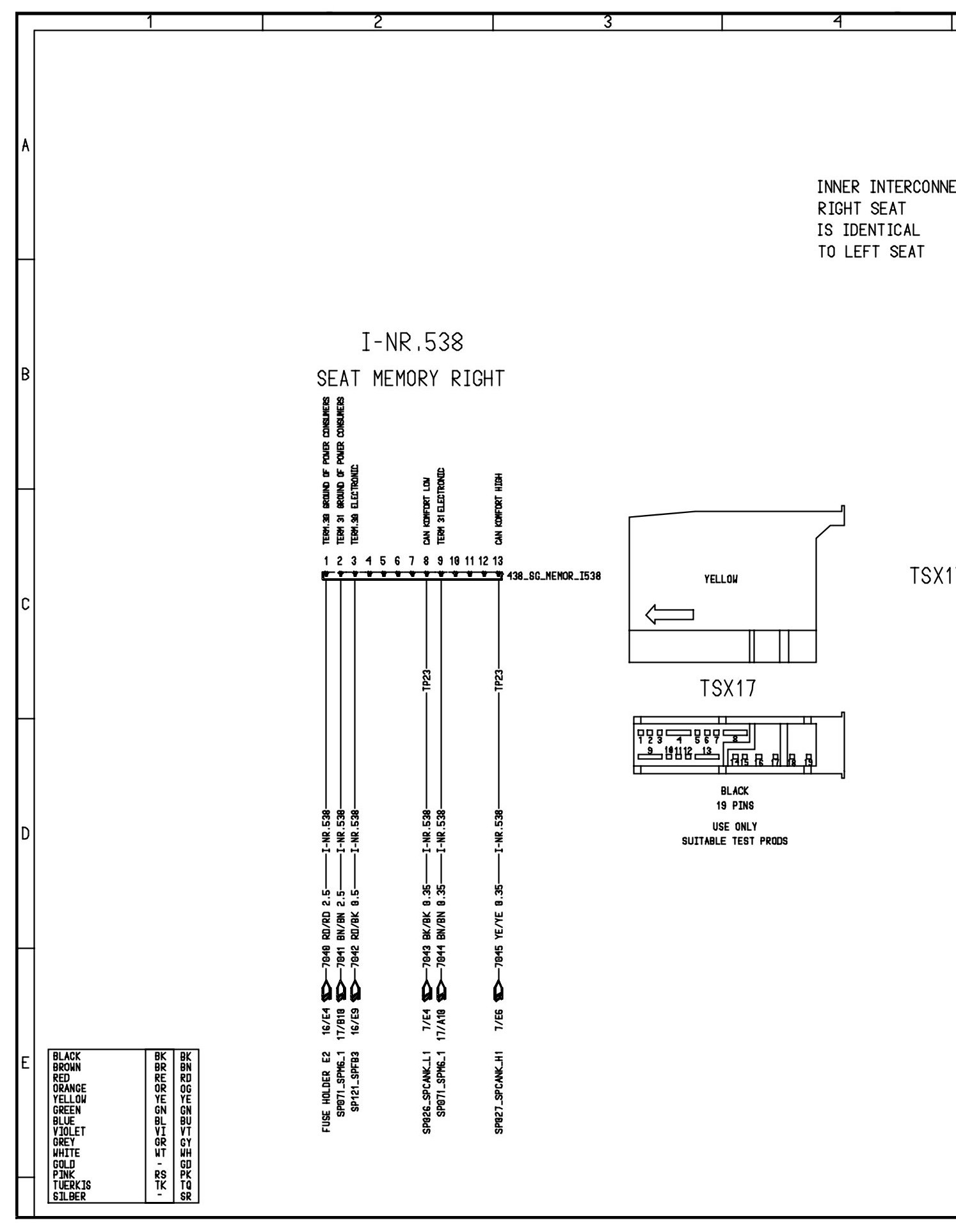

Advanced Airbag - Sheet 10B (Part 2):

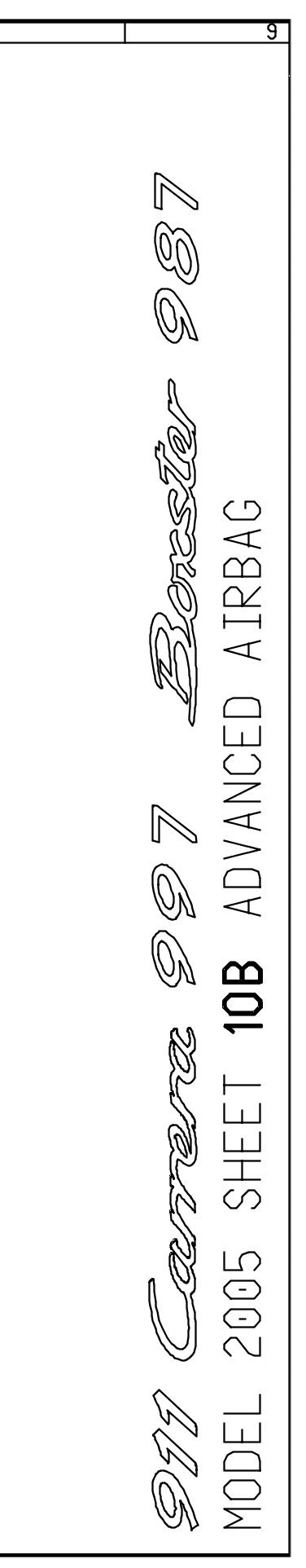

Advanced Airbag - Sheet 10B (Part 3):
