Installing

Installing air guide
Installing air guide for middle radiator





1. Fit air guide for middle radiator. Move air guide on radiator to installation position. To do this, press on the right and left rubber tabs for the air guide on the radiator -1-. Push in the top three rubber tabs -2-. Press the edge of the air guide around the radiator. Check that it is fitted correctly.

Installing air guide for side radiator





1. Fit rear air guide on cooling fan. To do this, push air guide into the tabs -3- and press air guide into the lock -2-. Fit cable connector -1 -.
2. Install side radiator.

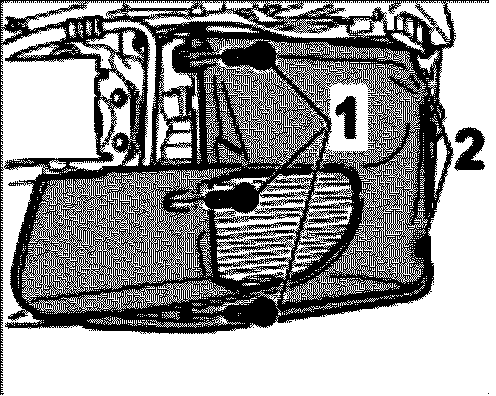

3. Fit air guide. To do this, push radiator sideways into the plastic tabs -2- and screw in 3 fastening screws -1-.





4. Fit the air guide on the right side in the same way as on the left side. In addition, push the temperature sensor into the air guide from behind -arrow-.

Subsequent work
Subsequent work for installing air guide

Install front apron
