Removing and Installing Side Trim Panel

Removing And Installing Side Trim Panel

Removing side trim panel

1. Unscrew fastening screw 1.
2. Unclip plastic clip 2 in the direction of arrow A.
3. Lift side trim panel up 3 and off.

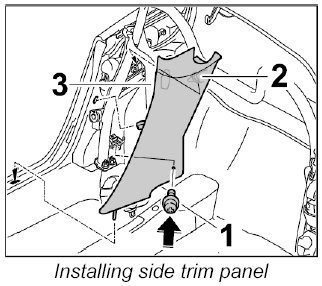

Installing side trim panel

Installation position for rear side trim panel ILLUSTRATION

1. Check support 4 and replace if necessary.







2. Position side trim panel 3 and clip in plastic clip 2.
3. Screw in fastening screws 1.
