Removing and Installing Side Trim Panel



707519 Removing And Installing Side Trim Panel

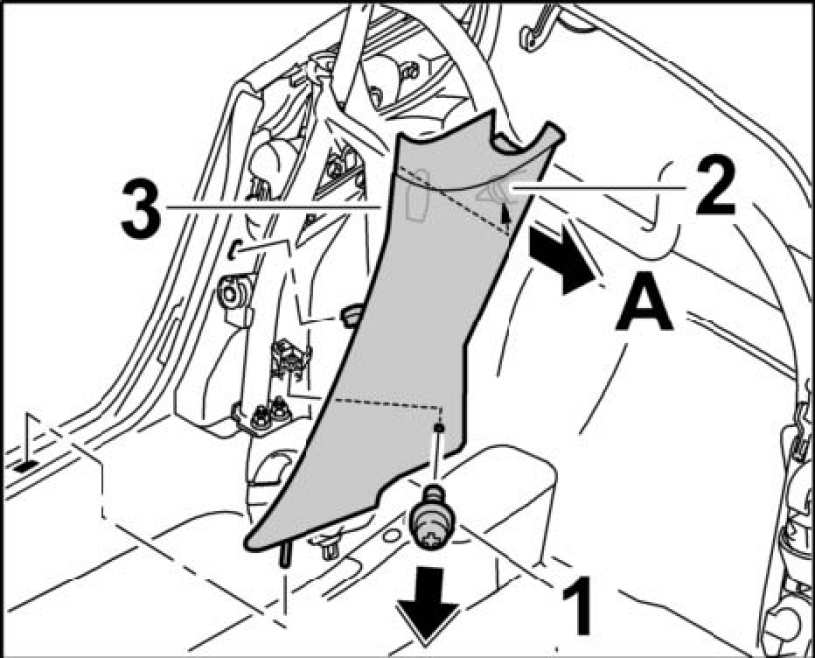

Removing side trim panel
1. Unscrew fastening screw -1-.
2. Unclip plastic clip -2- in the direction of arrow A.
3. Lift side trim panel up -3- and off.


Removing Side Trim Panel:
