Removal and Replacement

Removing And Installing Sun Visor

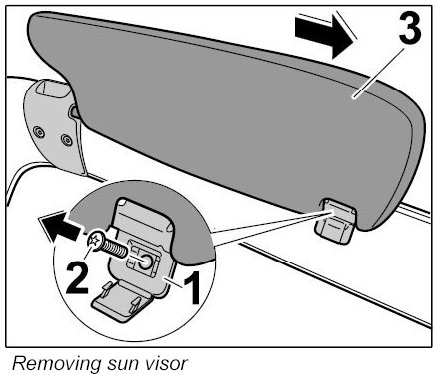

Removing sun visor







1. Unclip cover -1- with a screwdriver and unscrew the fastening screw -2-.
2. Pull off the sun visor -3- from the mounting saddle towards the centre of the car.

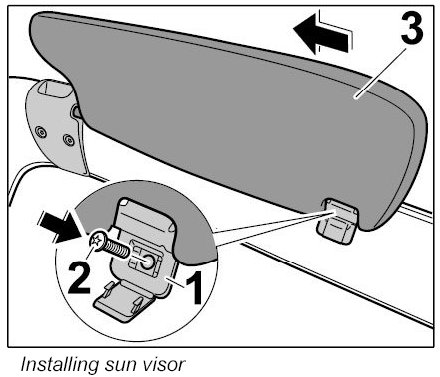

Installing sun visor







1. Insert sun visor -3- into the mounting saddle.
2. Position sun visor -3- and screw down using the fastening screw -2-.
3. Press in cover -1- until it engages.
