Removing and Installing Shelf

681619 Removing And Installing Shelf

Preliminary work
1. Remove centre console cover.

Removing shelf

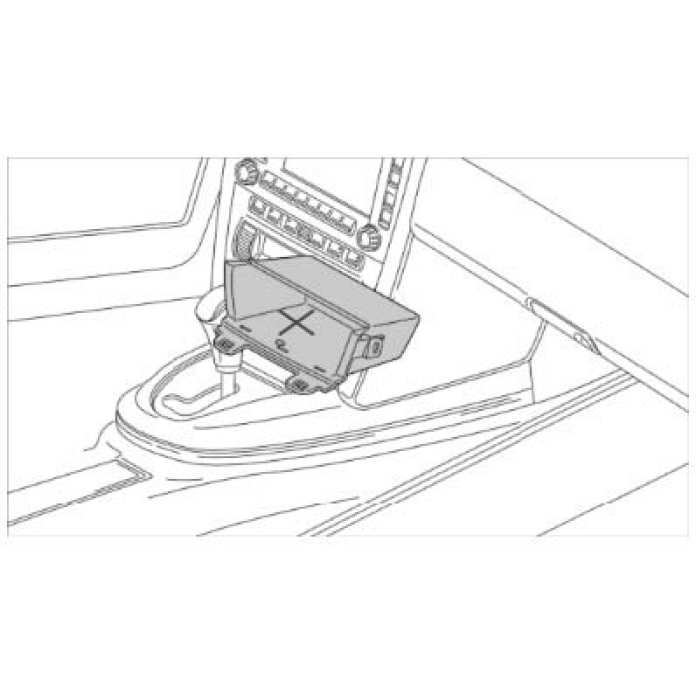

Installtion Location For Shelf:

1. Unscrew fastening screws -1- and take off shelf -2- with mat -3-.

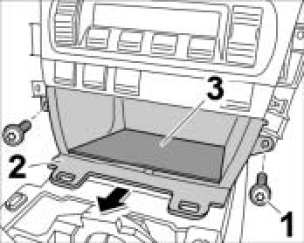

Removing Shelf:

Installing shelf

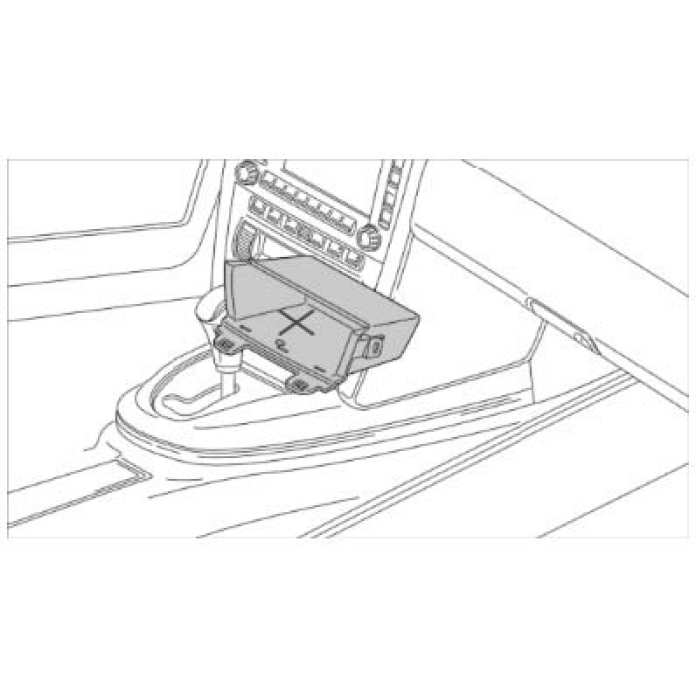

Installation Location For Shelf:

1. Position shelf -2- and screw down using the fastening screws -1-.

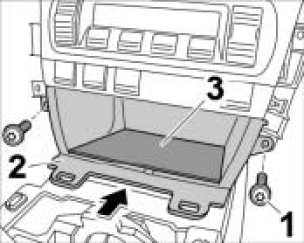

Installing Shelf:

2. Insert the mat -3-.

Subsequent work
1. Install centre console cover.
