Removing and Installing Console For Telephone

918819 Removing and installing console for telephone

Removing console for telephone

Installation Position:

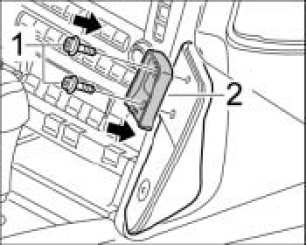

1. Unscrew the two fastening screws -1- and remove the mounting plate -2-.

Unscrewing Fastening Screw -1-:

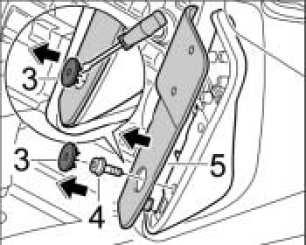

2. Carefully unclip the cover -3- with a screwdriver.

Unclipping Cap:

3. Unscrew the fastening screw -4- and remove the carrier -5-.

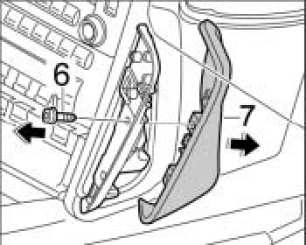

4. Unscrew the fastening screw -6- and remove the trim -7-.

Unscrewing Fastening Screw And Removing Trim:

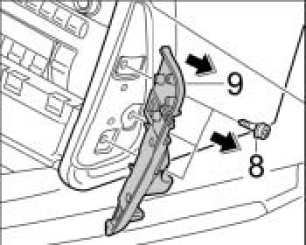

5. Unscrew the three fastening screws -8- and remove console for the telephone -9-.

Unscrewing Fastening Screw And Removing Telephone Console:

Installing console for telephone

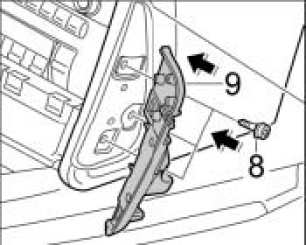

1. Position console for telephone -9- and screw down with the three fastening screws -8-.
Tightening torque 1.5 ftlb. ±0.2 ftlb.

Positioning And Securing Telephone Console:

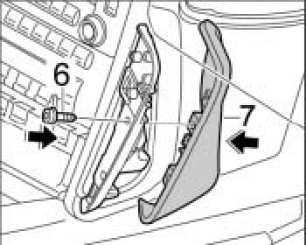

2. Press trim -7- on the console and screw down with the fastening screw-6-.
Tightening torque 1.5 ftlb. ±0.2 ftlb.

Positioning Trim And Securing With The Fastening Screw:

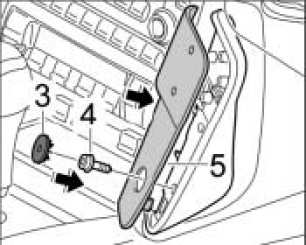

3. Press carrier -5- on the console and screw down with the fastening screw-4-.
Tightening torque 1.5 ftlb. ±0.2 ftlb.

Positioning And Securing Carrier:

4. Position the cover -4- and clip it into place.

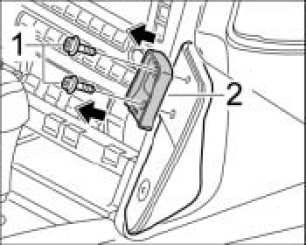

5. Secure the mounting plate with the fastening screws -1-.
Tightening torque 1.5 ftlb. ±0.2 ftlb.

Securing Mounting Plate:

6. Place the handset in the bracket.
