Removing and Installing Rear Bumper Overrider

Removing And Installing Rear Bumper Overrider

Preliminary work

Remove rear apron. Refer to Removing and installing rear apron

Removing rear bumper overrider

Removing rear bumper horn

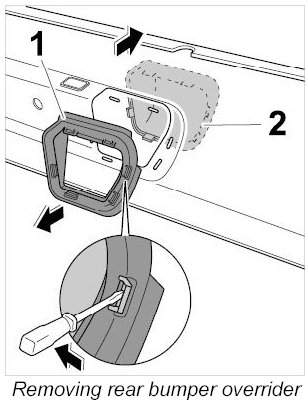

1. Insert a screwdriver laterally into the inner retaining bracket -1-. Press in the locking tab and take off the bumper overrider -2-.







Installing rear bumper overrider

Installing the rear bumper horn

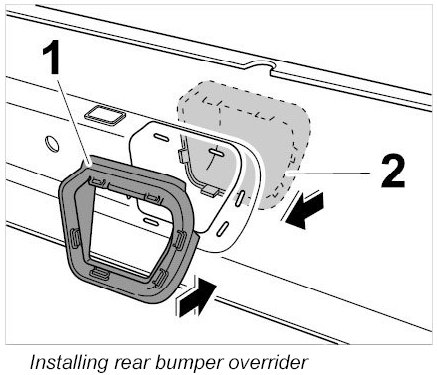

1. Position bumper overrider -2- on the rear apron and clip together with the inner retaining bracket -1-.







Subsequent work

Install rear apron. Refer to Removing and installing rear apron
