Antenna Amplifier: Service and Repair

Removing And Installing Antenna Amplifier

Removing antenna amplifier

INFORMATION:
- The antenna amplifier is installed together with the PCM.
- The antenna amplifier is located on the A-pillars.
- Remove the ignition key and switch off the audio system.

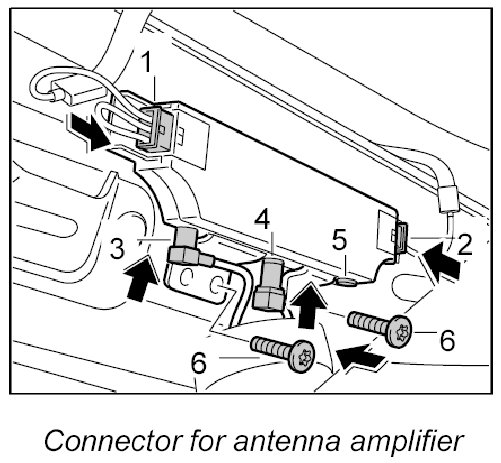

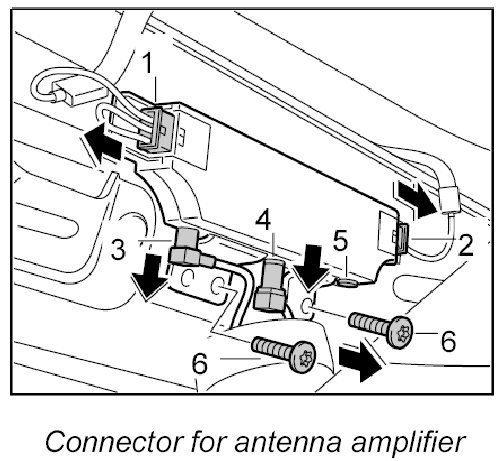

1. Unplug the antenna plug for the windscreen -1, 2-.
2. Unplug the plug connections for the antenna control unit -3, 4- on the left-hand side and -3, 4, 5- on the right-hand side.
3. Unscrew both fastening screws -6-.

Installing antenna amplifier








1. Position the antenna amplifier on the A-pillar and screw down the fastening screws -6-.
2. Plug in the connectors for the antenna control unit -3, 4- on the left-hand side and -3, 4, 5- on the righthand side.
3. Plug in the antenna connectors for the windscreen -1- and -2-.
