Installing Control Unit For Gas Discharge

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

Press in the electrical connector for the gas-discharge control unit until it clicks into place.

Fig 1: Connecting Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the control unit in the headlight cap and screw down with both fastening screws -1- .

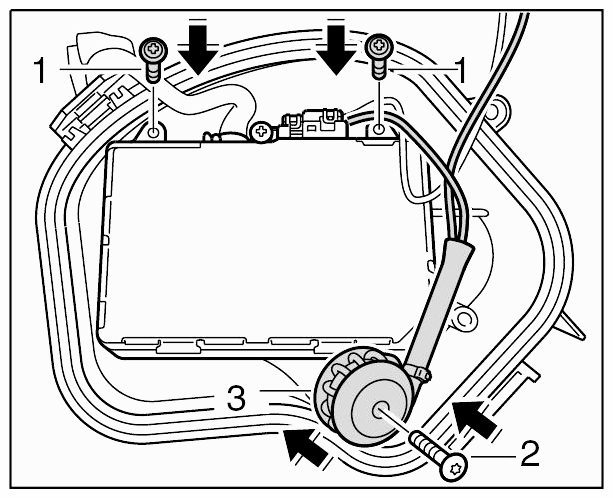

Fig 2: Screwing Down Coil Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push on the coil and screw it down with the fastening screw.
