Removing Front Control Unit

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

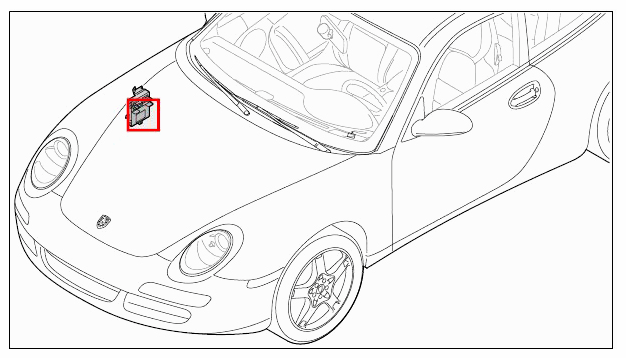

Fig 1: Identifying Front Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

If a new control unit has to be installed, read out data from the "old" control unit if possible using the PIWIS Tester 9718. → Coding (Programming) Control Unit

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

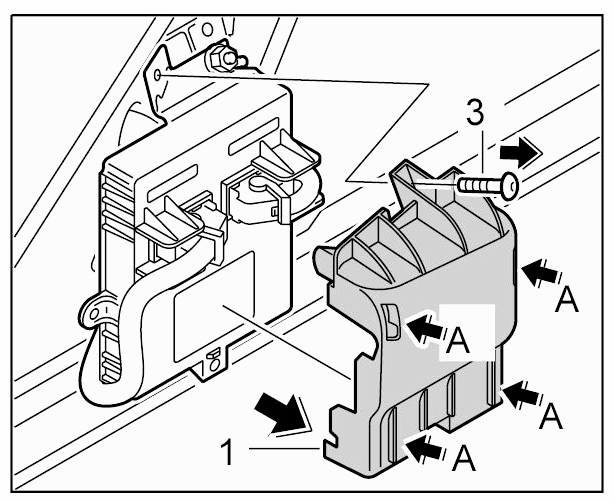

Unscrew fastening screws -3- .
Push a screwdriver into the openings -A- and unclip the four clips holding the cover -1- .

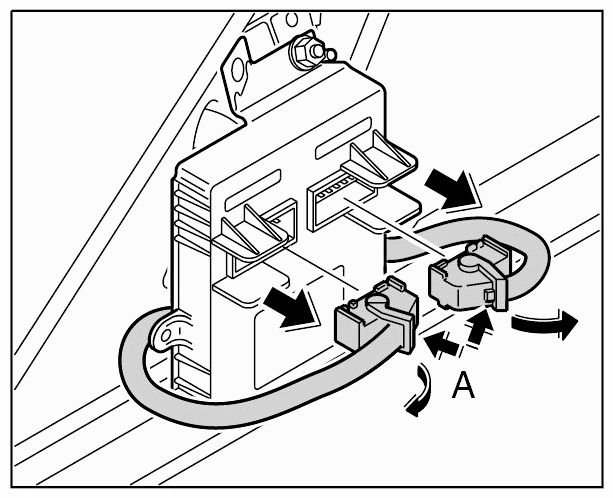

Release and unplug both electric connectors -A- and disengage the left and right electric lines on the control unit.

Fig 2: Removing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 3: Removing Electric Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

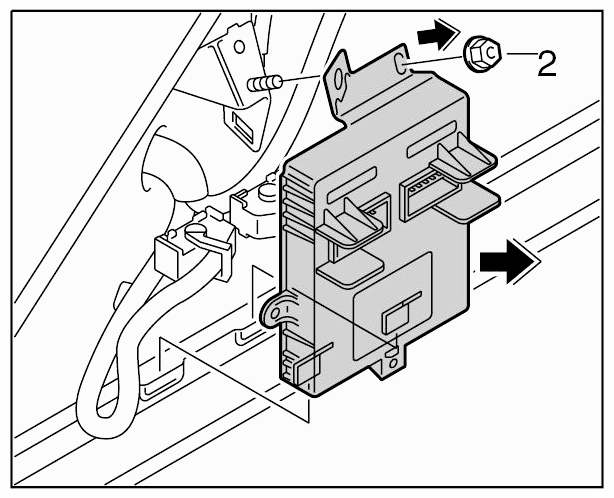

Unscrew the fastening nut -2- , lift up the control unit and disengage it.

Fig 4: Disengaging Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
