Installing Front Control Unit

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2012 Porsche Cayman, 2012 Porsche Boxster, 2011 Porsche Cayman, 2011 Porsche Boxster, and 2010 Porsche Cayman. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Insert the front control unit into the body and secure with the fastening nut -2- . → M6: 9.7 Nm (7.5 ftlb.)

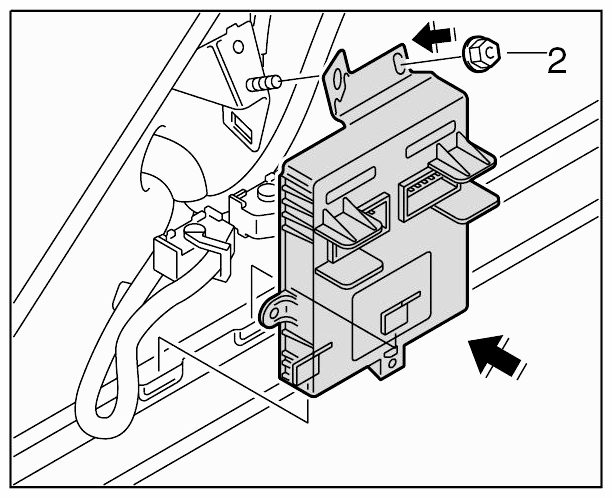

Fig 1: Engaging Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Plug in electric connector and lock it so that it engages securely.
Clip in left and right electric lines to the control unit.

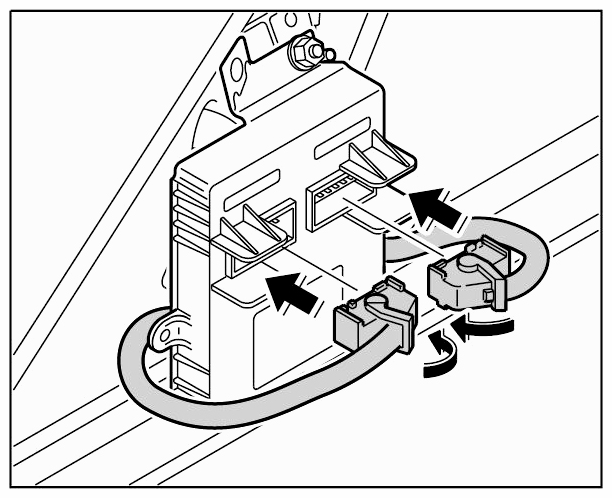

Fig 2: Plugging Electric Connectors

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position the cover -1- and push it in until it snaps into place in the four clips.
Secure the cover with the fastening screw -3- .
If a new control unit was installed, it must be coded to suit the vehicle. → Coding (Programming) Control Unit

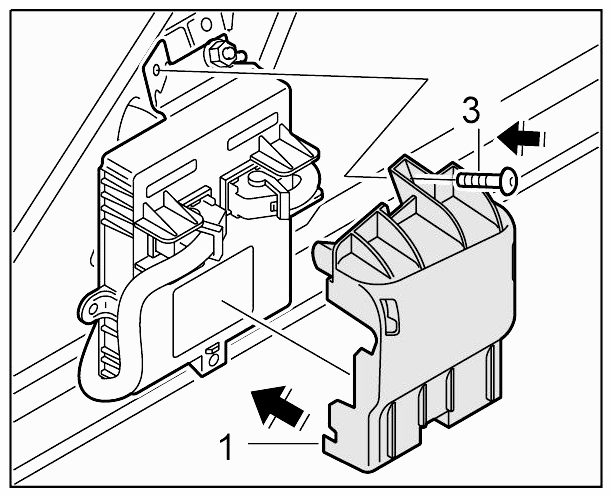

Fig 3: Fitting Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
