Installing brake light switch

The following points must be observed during installation:

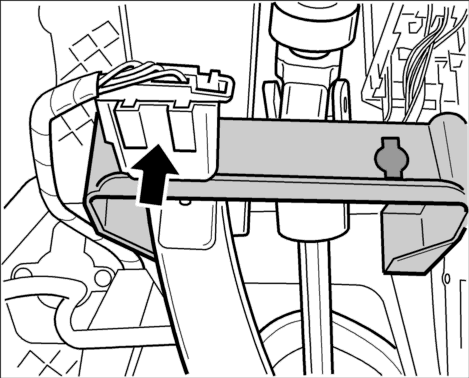

Fig 1: Overview of brake light switch
GP00017846Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. The switch plunger must be pulled out of the switch completely before fitting the switch.

2. Keep the brake pedal in an "unactuated" position, insert switch into the take-up bore and lock it by turning clockwise as far as it will go. This sets the valve push rod to the exact length.

3. Check the operation of the brake light switch.
