Removing rear spring strut (steel springs)

Fig 1: Rear-axle spring strut (steel springs, complete)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 2: Use rubber base between universal jack and wheel carrier

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Spring strut screws are under tension. Use a suitable lift with rubber base.

1. Remove spring strut at wheel carrier. Let connecting rod hang to the side.

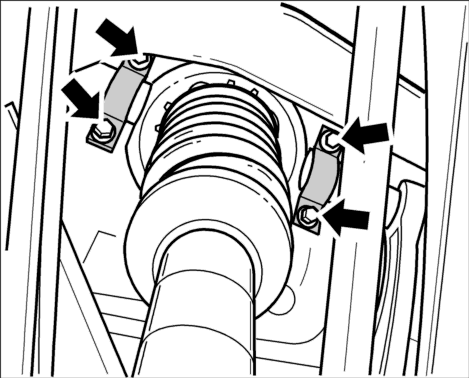

Fig 3: Releasing spring strut at top (four screws at the damper housing)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Release spring strut at top (four screws at the damper housing) -arrows- . To do this, use a 3/8 inch changeover ratchet with extension and universal joint. See Fig 3.

3. Carefully remove the spring strut assembly with damper housing from the vehicle.
