Installing rear brake disc

Do not confuse right and left brake discs during assembly!

Distinguishing characteristic: Part No.! The flat surface of the brake discs is marked with R = right or L = left.

1. Check that all parts are in perfect condition and replace them if necessary.

2. Clean the levelling and centering surfaces on the brake disc and wheel hub. Then apply a very thin coat of Optimoly TA to the centering surface on the wheel hub.

Fig 1: Brake disc and fastening screw

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Fit the brake disc. Observe tightening torque. → 46 TW Tightening torques for brake mechanics - as of MY 2003 (All Models Except Cayenne S TIO Titan) .

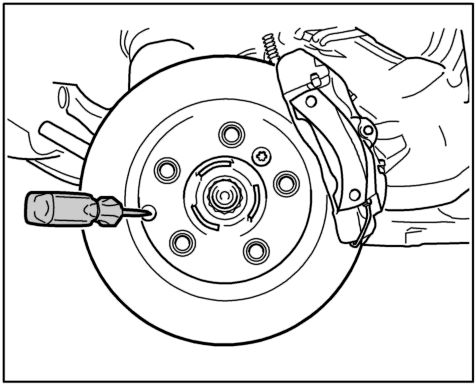

Fig 2: Turning adjustment device with screwdriver

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Adjust the brake shoes of the foot-operated parking brake with a screwdriver. → 468316 Adjusting foot-operated parking brake - "adjusting" See Fig 2.

5. Fit the brake caliper. Replace the brake caliper fastening screws after each removal. Observe tightening torque. → 46 TW Tightening torques for brake mechanics - as of MY 2003 (All Models Except Cayenne S TIO Titan) .

6. Position disc brake pads by operating the brake several times.

Fig 3: Brake fluid reservoir

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Check brake fluid level and correct if necessary. The brake fluid level must lie within the MAX - MIN marking. See Fig 3.
