Replacing bulb

Fig 1: First generation tail light

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove the tail light.

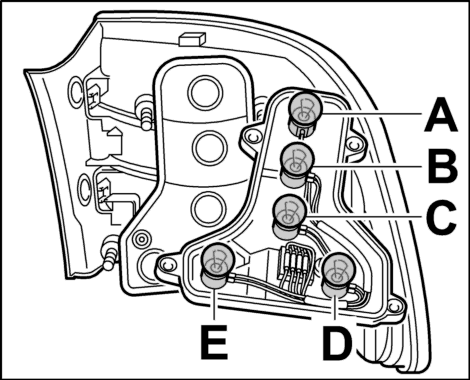

Fig 2: Second generation tail light

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A  - Brake light. P 21 W

B  - Direction indicator light. P 21 W

C  - Reverse light. P 21 W

D  - Rear fog light and tail light. P 21/4 W

E  - Tail light. P 21/5 W

2. Turn bulb holder and remove it.

3. Press bulb into holder, turn and remove it.

4. Insert new bulb, press into holder and turn if necessary. Ensure it is fitted properly.

5. Ensure lead is routed correctly and install tail light.
