Removing the electrohydraulic control unit

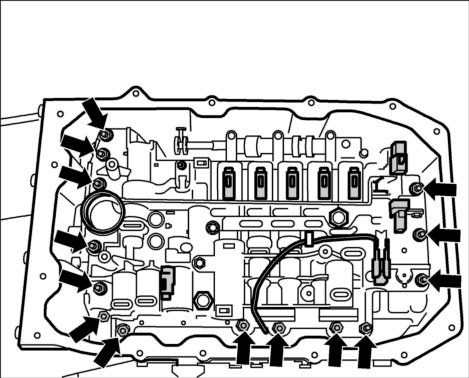

Fig 1: Control unit fastening screws
GP00009805Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Remove electrohydraulic control unit. To do this, unscrew fastening screws -arrows-  and remove the control unit. See Fig 1.
