Checking the steering column of a vehicle involved in an accident

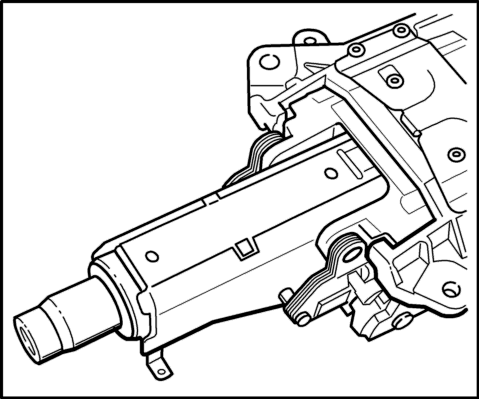

Fig 1: Steering column

Courtesy of PORSCHE OF NORTH AMERICA, INC.

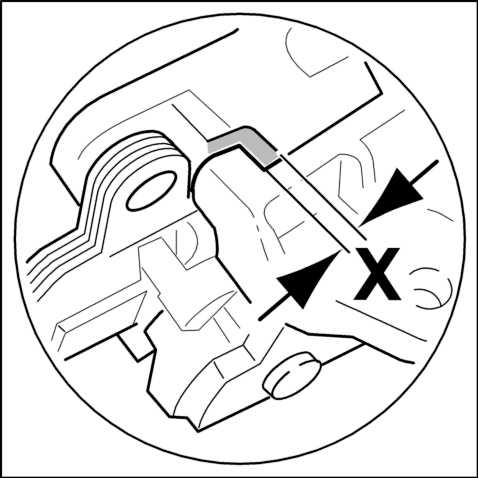

Fig 2: Steering column gap dimension: X

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The gap dimension on the steering column can still be used. The → Gap dimension: 0.5 mm -X-  . If the gap is larger, the steering column must be replaced. In this case, the driver has been forced against the steering wheel in an accident and has pushed the carriage in the steering module in the direction of travel. The gap dimension X can be checked using a feeler gauge. See Fig 2.

If the listed criteria are insufficient for a decision, we recommend that the steering column be replaced by a new or exchange unit.
