Installing sealing bellows of the steering column

NOTE:

The steering columns must only be replaced as a complete unit. Individual components cannot be disassembled and replaced.
Visually inspect all parts.
Make sure that everything remains absolutely clean.
Use the prescribed lubricant on the sliding part (see Parts Catalogue in Main Group 40305). This lubricant is available under the following part numbers: Container quantity: one 10-gram tube = 000.043.205.44!
Use the prescribed lubricant at the sleeve contact point with the friction ring of the sealing sleeve (see Parts Catalogue in Main Group 40305). This lubricant is available under the following part number: Container quantity: one 30-gram tin = 999.917.557.00!
Fit together both parts of the steering column that were previously marked with -color markings- . See Fig 1.
The lower steering shaft must slide on the upper steering shaft smoothly and without catching.

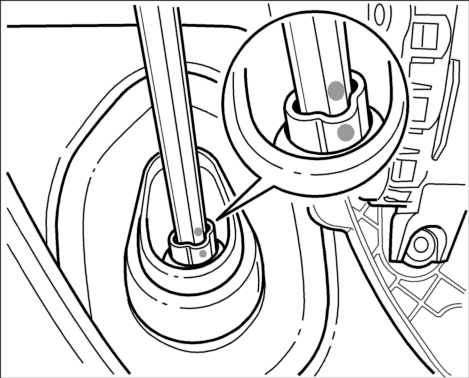

Fig 1: Mark both intermediate steering shaft for assembly

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Fit the sealing bellows of the steering column in the correct position.

Fig 2: Lower steering shaft separated from upper steering shaft

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Slide the lower steering shaft onto the upper steering shaft. Overcome the pressure point with a strong jerk. See Fig 2.
