Checking brake fluid level

Fig 1: Brake fluid reservoir

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The brake fluid level must not exceed the MAX mark.
Observe brake fluid quality. Use only new DOT 4 brake fluid.
This brake fluid is available under the following part numbers: container quantity 1 litre = 000.043.203.66; container quantity 30 litres = 000.043.203.67.

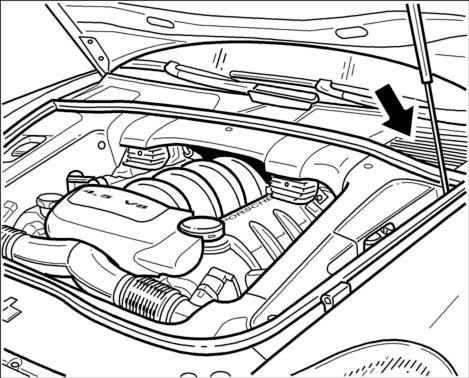

Fig 2: Location of brake booster, master cylinder and fluid reservoir

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Visually inspect brake fluid level. The brake fluid level must be between the MAX and MIN markings. The brake fluid reservoir is located under the left plenum panel cover -arrow- . See Fig 2.
