Checking battery vent hose under the driver's seat

1. Replace the battery box cover carefully. The ventilation channel must be mounted properly.

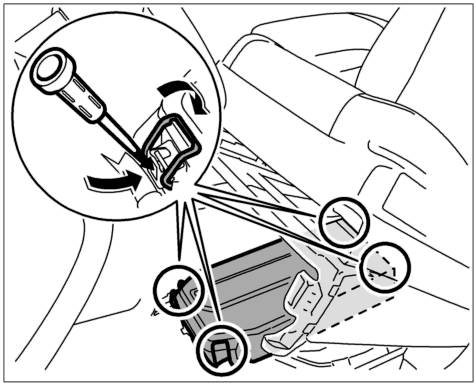

Fig 1: Attaching tension hooks for battery case cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Attach the four tension hooks in the battery case cover and close using the screwdriver.

→ The fastening screws for seat and seat frame are coated and must be replaced after being unscrewed.

→ Before screwing in the new fastening screws, clean the thread holes with an M10 x 1.5 tap!

3. Move the seat in its folded position towards the rear and then tip forward.

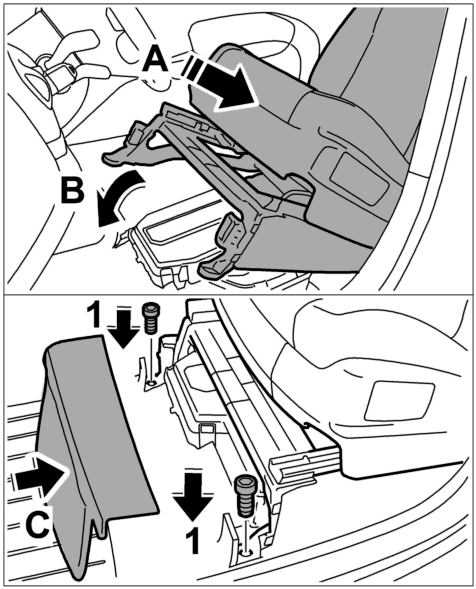

Fig 2: Battery

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Screw in fastening screws -1-  and put back the carpet sections. → Tightening torque: 33 ftlb.  See Fig 2.

5. Clip in front seat trim -C-  . See Fig 2.

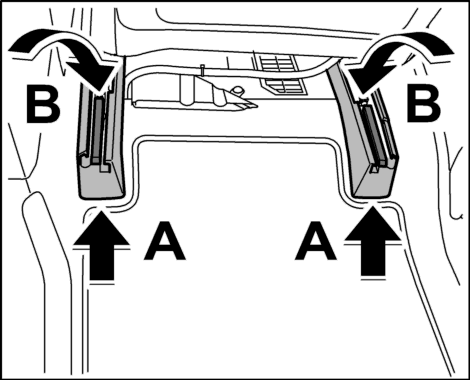

Fig 3: Installing rear cover caps onto seat rails

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Push rear cover caps onto seat rails -arrows A-  and press down the covers -arrows B-  until these engage audibly. See Fig 3.
