Replacing ignition coils of cylinder row 5-8

NOTE:

A rag should be placed between the secondary air pump and the design cover to prevent the cover from being scratched.

Fig 1: Fastening screws on ignition coil cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Unscrew the 4 fastening screws on the ignition coil cover.

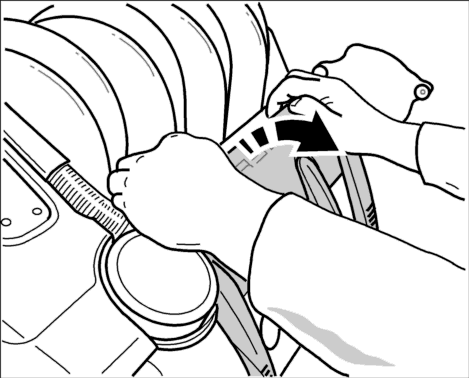

Fig 2: Design cover of cylinder bank 5-8

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Remove design cover of cylinder bank 5-8. To do this, lift the cover slightly with both hands at the side pointing towards the intake system until it is released from its bracket.

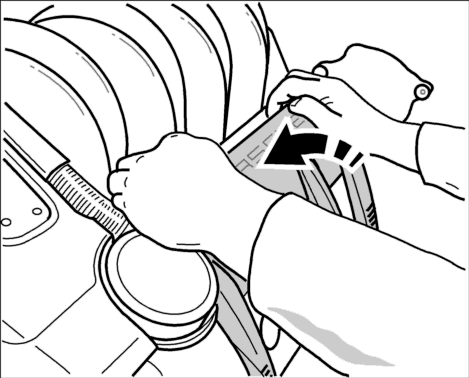

Fig 3: Removing the design cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Lift the front of the design cover and remove it.

Fig 4: Pulling off plug

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Disconnect the ignition coil. To do this, press the button on the connector and pull off the connector.

Fig 5: Fastening screws for ignition coil

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Loosen ignition coil. To do this, unscrew the fastening screw on the valve cover.

Fig 6: Pulling the ignition coil out and replacing it

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Pull the ignition coil out and replace it.

Fig 7: Fastening screws for ignition coil

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Reconnect a new ignition coil. Tighten the fastening screws. → Tightening torque: 7.5 ftlb.

Fig 8: Sliding on the connector

Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Connect ignition coil. To do this slide on the connector until it locks with an audible click.

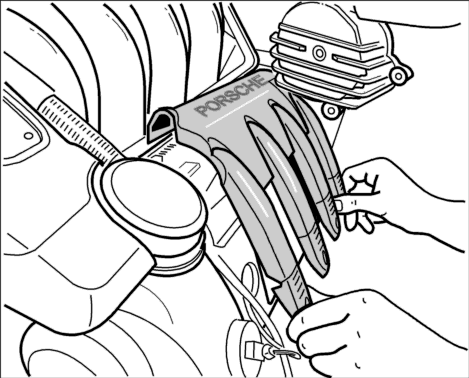

Fig 9: Sliding the design cover onto the secondary air pump

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

A rag should be placed between the secondary air pump and the design cover to prevent the cover from being scratched.

9. Slide the design cover under the secondary air pump as illustrated.

Fig 10: Rubber mounting on support

Courtesy of PORSCHE OF NORTH AMERICA, INC.

10. Then press in the two rubber mountings on the support. The rubber mountings must be felt to engage.

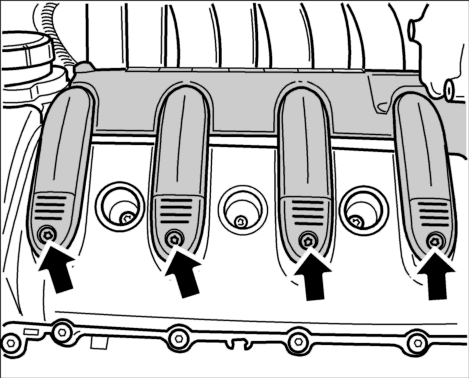

Fig 11: Fastening screws on the ignition coils

Courtesy of PORSCHE OF NORTH AMERICA, INC.

11. Tighten the 4 fastening screws on the ignition coils. → Tightening torque: 3.5 ftlb.
