Installing throttle housing

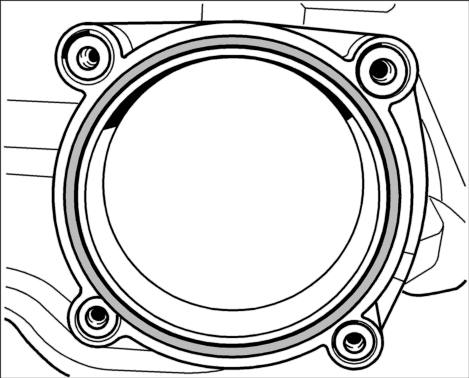

Fig 1: Sealing ring for throttle housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Check condition of sealing ring. Replace sealing ring if necessary → Sealing ring for throttle housing  . See Fig 1.

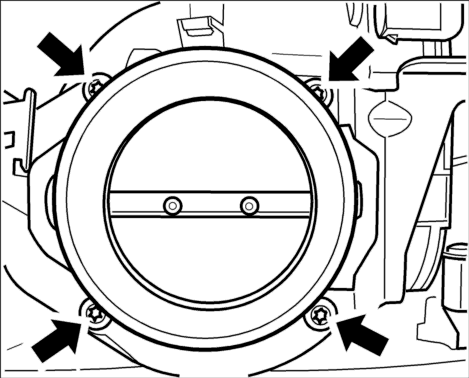

Fig 2: Throttle adjuster mount

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Move throttle housing into installation position and place sheetmetal reinforcement around the throttle housing. Insert and screw in four screws -Arrows-  . → Tightening torque: 8 (6 ftlb.) Nm  . See Fig 2.

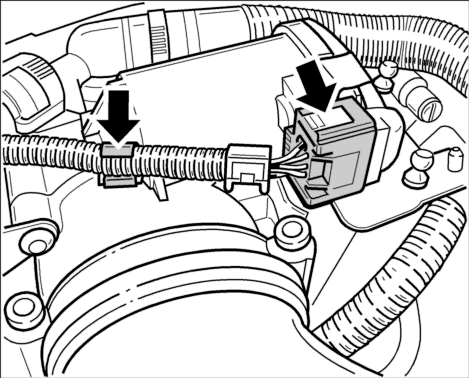

Fig 3: Cable plug for throttle housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Attach cable plug to throttle housing and insert cable into clip -Arrows-  . See Fig 3.
