Removing air cleaner housing

Fig 1: Cover cap

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. On vehicles with air suspension, remove the air tube on the right air cleaner cover. To do this, unclip the green cap. Insert a screwdriver into the notch of the cap and lever the cap off.

Fig 2: Circlip

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Push the circlip into the flange -1- and then pull it off together with the flange -2- . See Fig 2.

Fig 3: Green cap

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Clip the green cap on again after disassembly.

Fig 4: Figure: Air cleaner housing for V8

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Unscrew the fastening screw on the air cleaner housing.

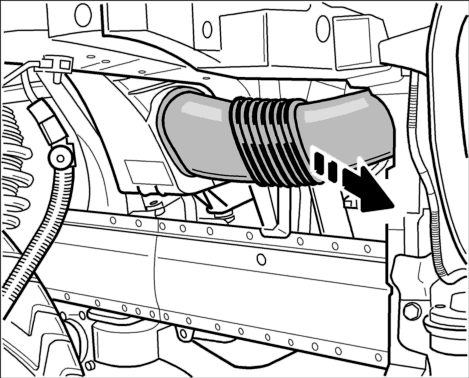

Fig 5: Figure: Air guide for V8

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Pull the air guide of the air cleaner housing out of the wheel well. To do this take hold of the air guide in one hand and pull it forwards at an angle.

Fig 6: Figure: Air cleaner housing for V8

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Lift the air cleaner housing, tip it towards the engine and remove it from the engine compartment.
