Installing air cleaner housing

Fig 1: Compressor line connection

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

On vehicles with air suspension, push the compressor line on to the air cleaner cover.

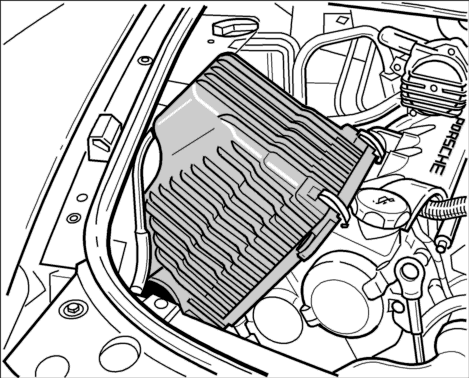

Fig 2: Figure: Air cleaner housing for V8

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Insert the air cleaner housing into the engine compartment at an angle from above.

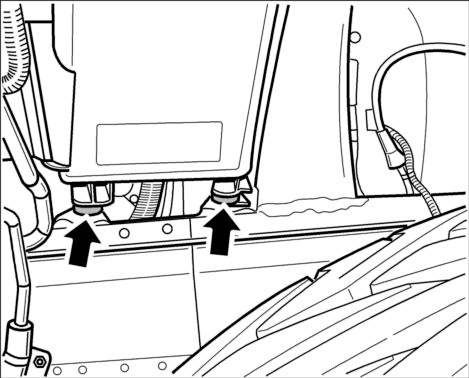

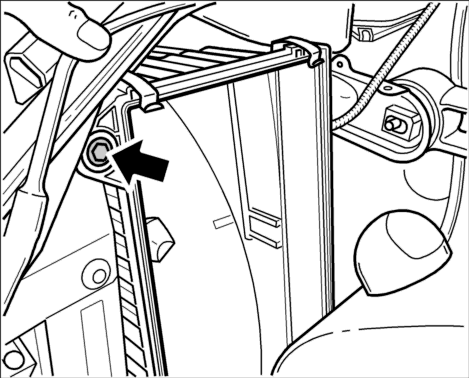

Fig 3: Fastening bolts and rubber washers

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Introduce the two retaining bolts on the underside into the take-up bores in the body. Check the wheel well to make sure that the blue rubber discs are present and ensure that the bolts are properly fitted.

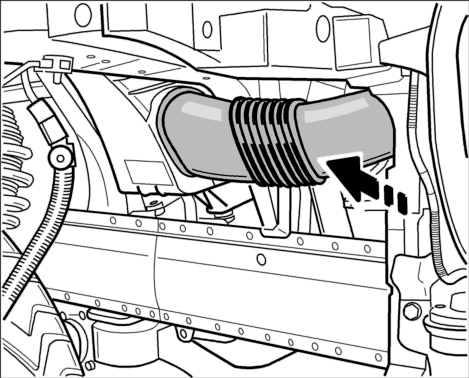

Fig 4: Figure: Air guide for V8

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Replace the air guide on the air cleaner housing from the wheel well. Check that the elements are installed correctly.

Fig 5: Figure: Air cleaner housing for V8

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Tighten the fastening screw on the air cleaner housing. → Tightening torque: 7.5 ftlb.
