Installing bracket for oil-water heat exchanger

1. Replace both O-rings in the flange. To do this, carefully lever out the O-rings with a non-abrasive implement (plastic wedge) and replace them with new ones.

2. Replace the O-rings on the oil transfer flange. To do this, lever off the O-rings with a non-abrasive implement (plastic wedge) and replace them with new ones.

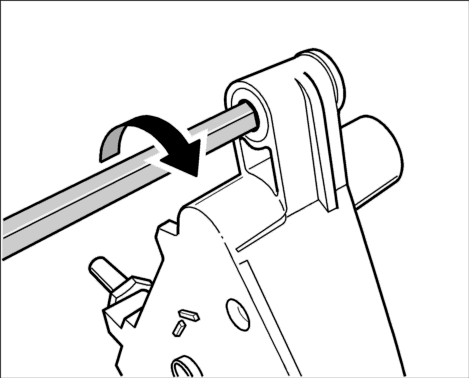

Fig 1: Allen key in bracket

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CAUTION: Danger from oil-water heat exchanger!

If the compensating element is not screwed in, the bracket can be braced and will break during operation as a result.

→ Before installing the bracket, screw the compensating element in completely.

3. Screw in length-compensating element. To do this, insert an Allen key through the screw hole into the bracket and turn the key anti-clockwise until the compensating element touches the bracket.

4. Apply a thin coat of engine oil to the two transfer flanges and position the bracket on the engine. Then push the bracket hard against the engine until the fastening screws can be put into place.

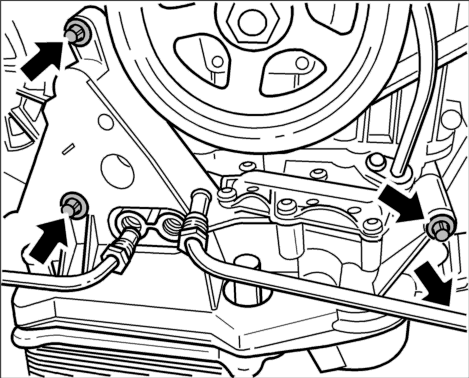

Fig 2: Sleeve and fastening screws for the bracket

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. The sleeve -1- is screwed in. Position the two fastening screws -arrows- and tighten until hand-tight. See Fig 2.

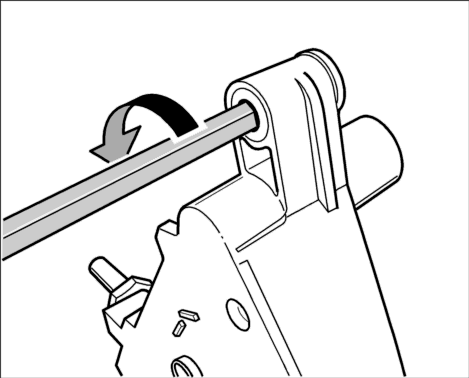

Fig 3: Allen key in bracket

Courtesy of PORSCHE OF NORTH AMERICA, INC.

6. Adjust compensating element. To do this, insert an Allen key -picture- through the screw hole into the bracket and turn the key clockwise until the compensating element touches the engine. → Tightening torque: 1.5 ftlb. +2 ftlb. See Fig 3.

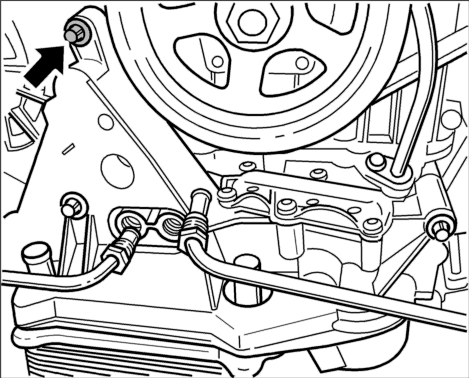

Fig 4: Bracket fastening screws

Courtesy of PORSCHE OF NORTH AMERICA, INC.

7. Fit the upper fastening screw -arrow- . Insert the screw through the compensating element and tighten it. → Tightening torque: 17 ftlb. Then tighten the 2 other fastening screws. → Tightening torque: 17 ftlb.

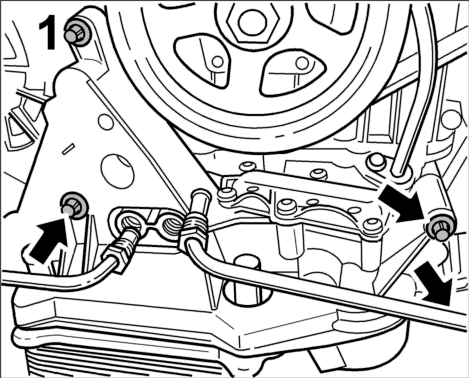

Fig 5: All three fastening screws

Courtesy of PORSCHE OF NORTH AMERICA, INC.

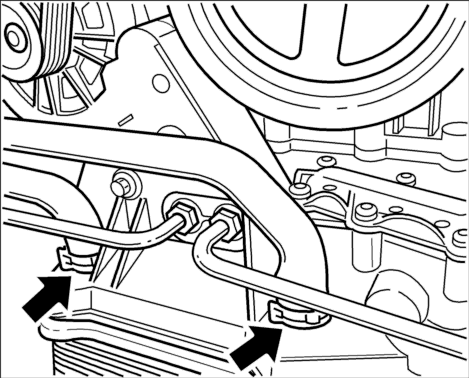

Fig 6: Pushing coolant lines onto connecting piece

Courtesy of PORSCHE OF NORTH AMERICA, INC.

8. Fit coolant lines from oil-water heat exchanger. Push both coolant lines onto the socket piece and fit the spring-band clamps using the spring-band clamp pliers.

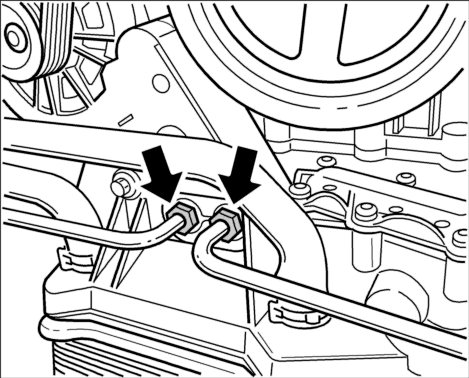

Fig 7: Union nuts for oil return lines

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The following step must only be performed for the M48/50 (V8 Turbo) engine.

9. Fit oil return lines for turbochargers. Insert the lines into the connections and align them. Then screw in the union nuts by hand and tighten them. → Tightening torque: 26 ftlb.
