Component overview

NOTE:

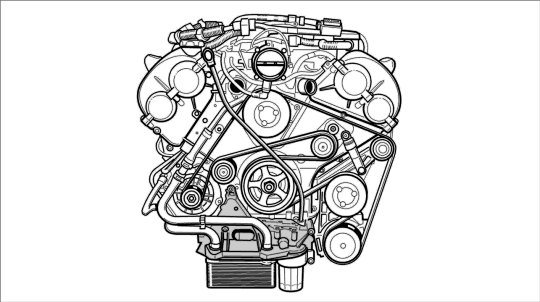

Fig 1: Overview of V8 engine

Courtesy of PORSCHE OF NORTH AMERICA, INC.

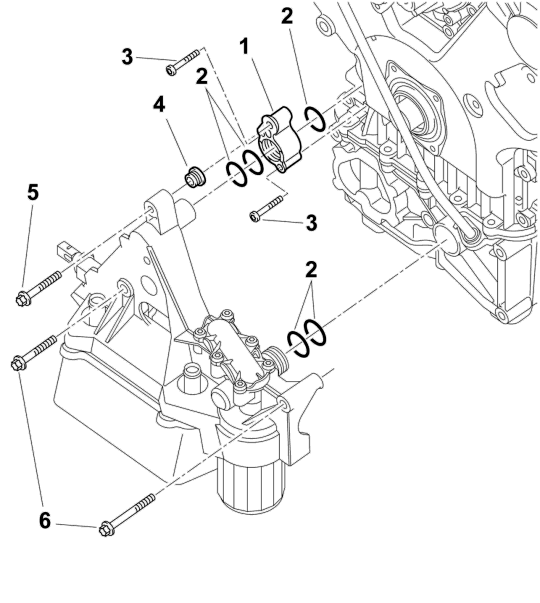

Fig 2: Overview of bracket to engine

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1 - Oil transfer flange

2 - 5 O-rings

3 - 2 fastening screws

4 - Length-compensating element

5 - Fastening screw, M8 x 50

6 - 2 fastening screws, M8 x 70

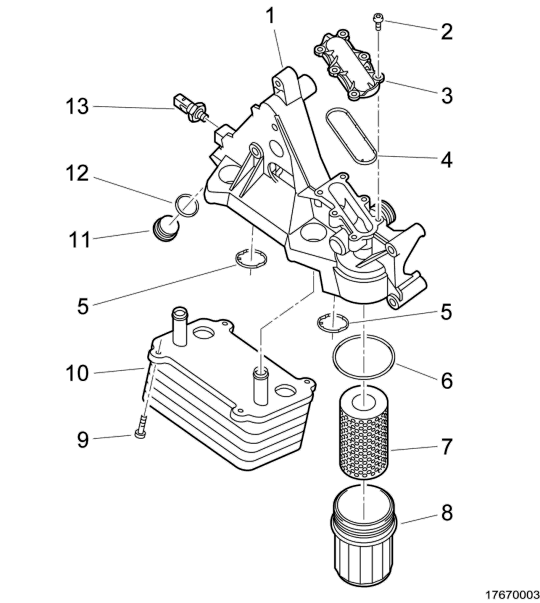

Fig 3: Overview of bracket

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1 - Oil filter bracket

2 - 6 lens-head screws M6 x 20 (only loosen the screws if absolutely necessary)

3 - Lids

4 - Seal

5 - 2 seals

6 - O-ring

7 - Oil filter element

8 - Oil filter housing

9 - 4 oval-head screws, M6 x 20

10 - Oil-water heat exchanger

11 - Screw plug, M26 x 1.5

12 - Sealing ring, A26 x 31

13 - Oil pressure switch (hot oil can leak out while removing)
