Component overview

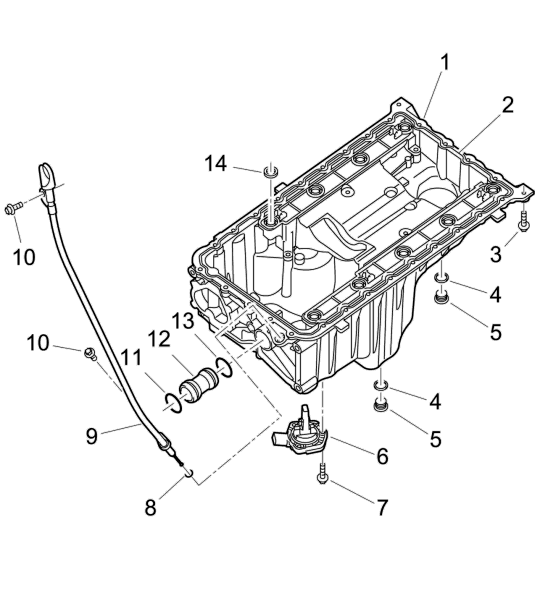

Fig 1: Oil pan - overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1 - Oil pan; plastic feeder must not be removed.

2 - Sealant application; remove silicone residues; no more than 5 minutes should pass between the time application begins and screwing. Do not smear the sealing bead when putting on the oil pan.

3 - Fastening screw M6 x 25

4 - Sealing ring 18 x 24; replace

5 - Drain plug; clean

6 - Oil level sensor (TOC); replace seal

7 - Fastening screw M6 x 25

8 - O-ring, 11.2 x 2.65, replace

9 - Oil dipstick

10 - Fastening screw with coned half dog M6 x 16

11 - O-ring, 23 x 3, replace, grease before assembly

12 - Socket; disassembly with spacer ring P 9597/1 and internal puller; assembly with assembly driver P 9691

13 - O-ring, 25; replace, grease before assembly

14 - Moulded seal; replace
