Component overview

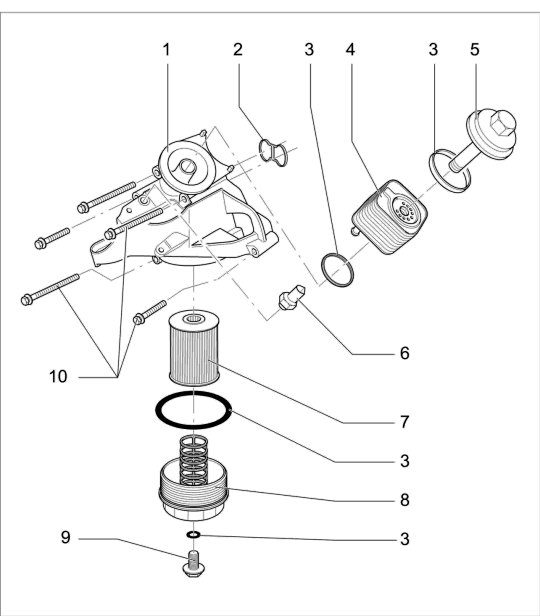

Fig 1: Oil filter housing and heat exchanger, component overview

Courtesy of PORSCHE OF NORTH AMERICA, INC.

-1-  - Oil filter housing/engine support arm. See Fig 1.

-2-  - Sealing ring. See Fig 1.

-3-  - Sealing ring. See Fig 1.

-4-  - Oil cooler. See Fig 1.

-5-  - → Tightening torque: 19 ftlb.  See Fig 1.

-6-  - → Tightening torque: 15 ftlb.  See Fig 1.

-7-  - Oil filter element. See Fig 1.

-8-  - → Tightening torque: 19 ftlb.  See Fig 1.

-9-  - → Tightening torque: 7.5 ftlb.  See Fig 1.

-10-  - → Tightening torque: 17 ftlb.  See Fig 1.
