Disassembling oil pressure control valve

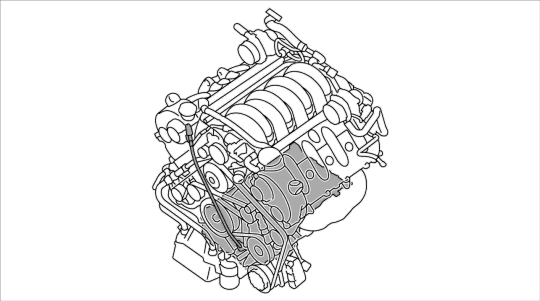

Fig 1: Overview
GP00008540Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
  • The description only applies when installed.
Fig 2: Component overview
GP00008534Courtesy of PORSCHE OF NORTH AMERICA, INC.

1  - Valve body; pay attention to the installation position

2  - Spring

3  - Sealing ring; replace

4  - M22 screw plug

1. Remove oil pan. → 175021 Removing oil pan - chapter on "Removing"

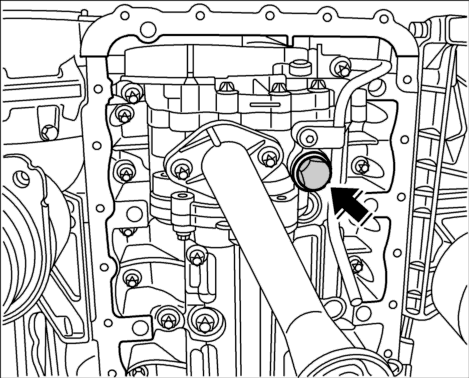

Fig 3: Screw plug of oil pressure control valve
GP00008536Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
  • When unscrewing the oil pressure control valve, ensure that the screw plug is under spring pressure.
  • Do not let the valve body fall.
  • Note the installation location of the valve body.
  • More oil can leak out from the opening.

2. Unscrew screw plug of oil pressure control valve (a/f 19) -arrow-  . See Fig 3.

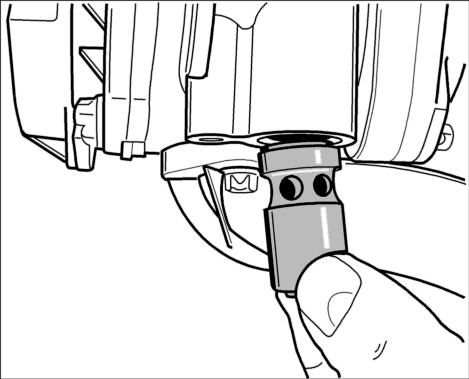

Fig 4: Valve body
GP00008535Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Remove the four components of the oil pressure control valve → Valve body  . Always replace sealing ring. See Fig 4.
