Component overview

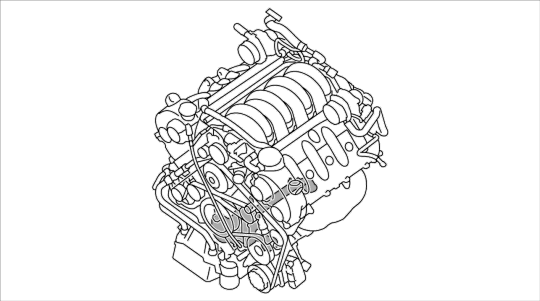

Fig 1: Overview
GP00008516Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
  • The oil pump must not be disassembled and reassembled!
  • When carrying out work on the oil circuit, it must be ensured that no dirt gets into the engine!
NOTE:
  • The oil pump can be replaced while installed.

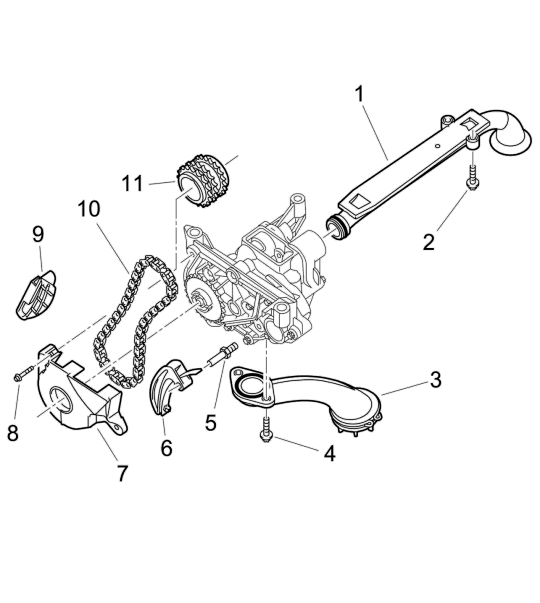

Fig 2: Oil pump
GP00008517Courtesy of PORSCHE OF NORTH AMERICA, INC.

1  - Rear intake pipe

2  - Fastening screw, M6 x 25

3  - Front intake pipe

4  - Fastening screw M6 x 25

5  - Pin

6  - Tensioning rail

7  - Mounting chain case cover

8  - Fastening screw M5 x 20

9  - Guide rail

10  - When reusing drive chain, mark running direction.

11  - Drive wheel on the drive chain, pay attention to the feather key
