Suspension Alignment, Complete: Notes
There are few differences between suspension alignment on the new 911 Turbo (996) and suspension alignment procedures on the 911 Carrera (996). This involves the vehicle height adjustment, the wheel-load difference from left to right, special tools and corrections to wheel alignment.
Modified quick-clamping holders are required for the 911 Turbo (996) (to fasten the measured-value pickups on the wheels). The quick-clamping holders present can be retrofitted by replacing the clamping units on the left and right. Supplier: Messrs. Beissbarth. These converted quick-clamping holders can also be used retroactively for the other Porsche models.
NOTE:
- Observe the changed tightening torque when using the insert (tool -A-). See Fig 1.

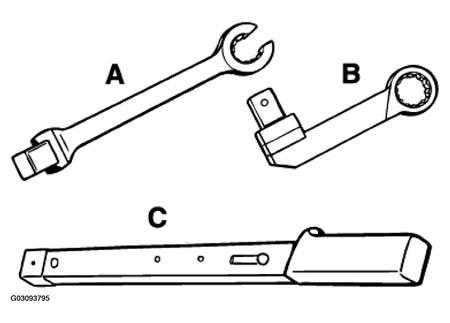

SERVICE TOOLS
| Item | Designation of the special tool | Explanation | ||
|---|---|---|---|---|
| A(1) | Used to tighten the lock nut(s) at the front track bar(s) to the specified tightening torque. It can also be used for loosening. The prescribed lock nut tightening torque of 50 Nm (37 ft.lb) corresponds to a setting on the torque wrench of approx. 35 Nm (26 ft.lb). | |||
| B(1) | Used to tighten the lock nuts of the camber and toe eccentrics at the rear axle to the specified tightening torque. It can also be used for loosening. | |||
| C(1) | Torque wrench covering the range between 35 Nm (26 ft.lb) and 85 Nm (63 ft.lb) | Commercially available; use in combination with tools A and B. | ||
|
||||
