Removing Pump
REMOVING PUMP
| No. | Procedure | Instructions |
| Removing pump unit | Refer to DISASSEMBLING AND ASSEMBLING REAR LID | |
| Installing hydraulic cylinder | Refer to INSTALLING HYDRAULIC CYLINDER | |

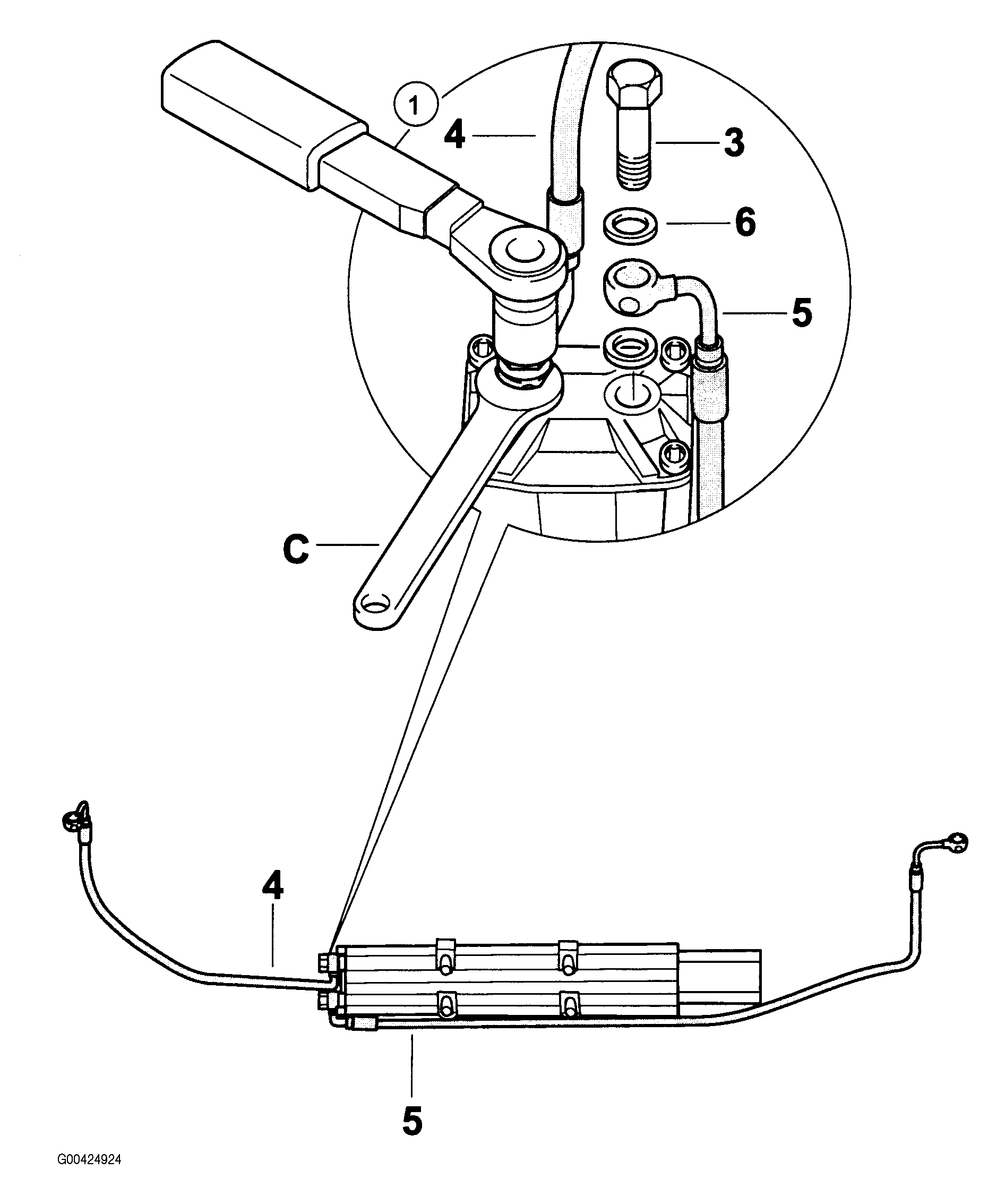

| 1 | Disconnecting pump | Unscrew the long banjo bolts -3- from the hydraulic lines -4, 5- . To do this, counter with an open-ended wrench -C- . |
