Installing front spoiler

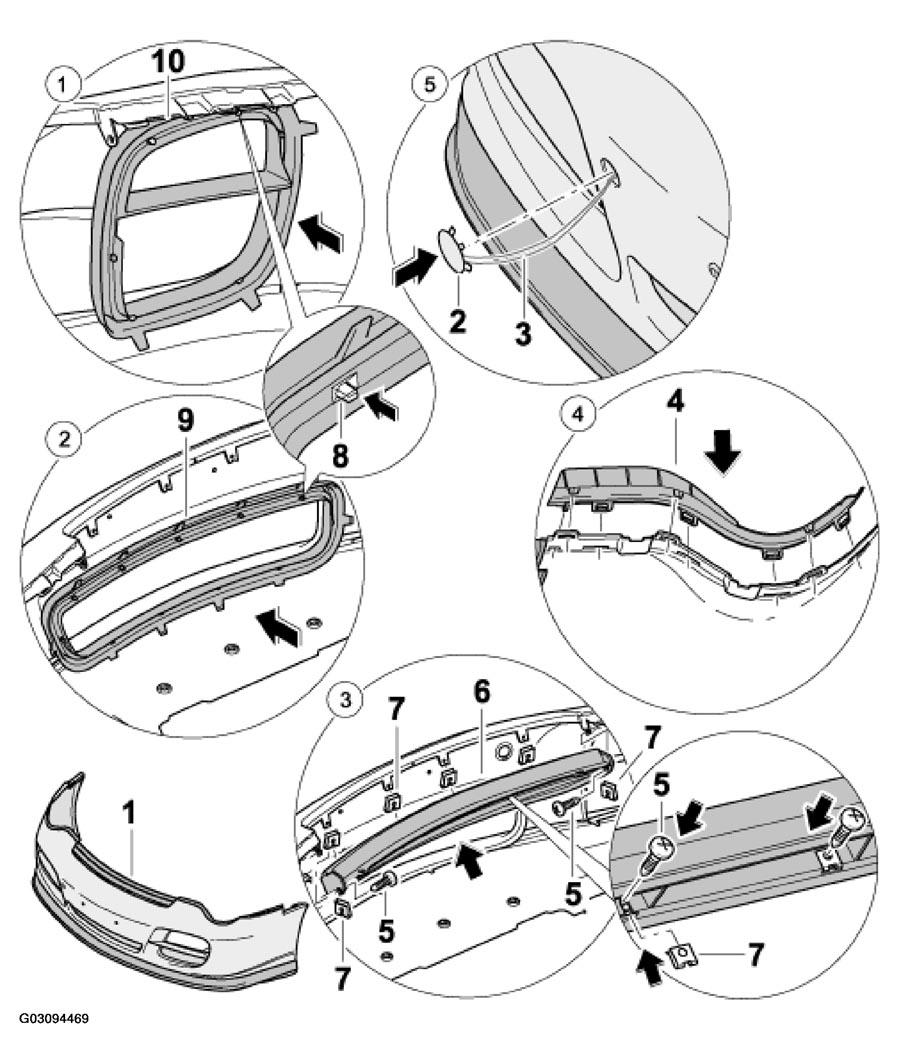

Fig 1: Installing Front Spoiler - GT2 (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT SPOILER INSTALLATION PROCEDURE AND INSTRUCTIONS - GT2 (1 OF 2)

No.	Procedure	Instructions
1	Install grille frame -10-	Position the grille frame -10-1-8-1-
2	Install frame centre -9-	Position the grille frame -9-1-8-1-
3	Install air outlet frame -6-	Check and, if necessary, replace sheetmetal nuts -7-6-1-6-5-
4	Install covering frame -4-	Lock covering frame -4-1-
5	Install covering cap -2-	Pull the securing cord -3-2-1-

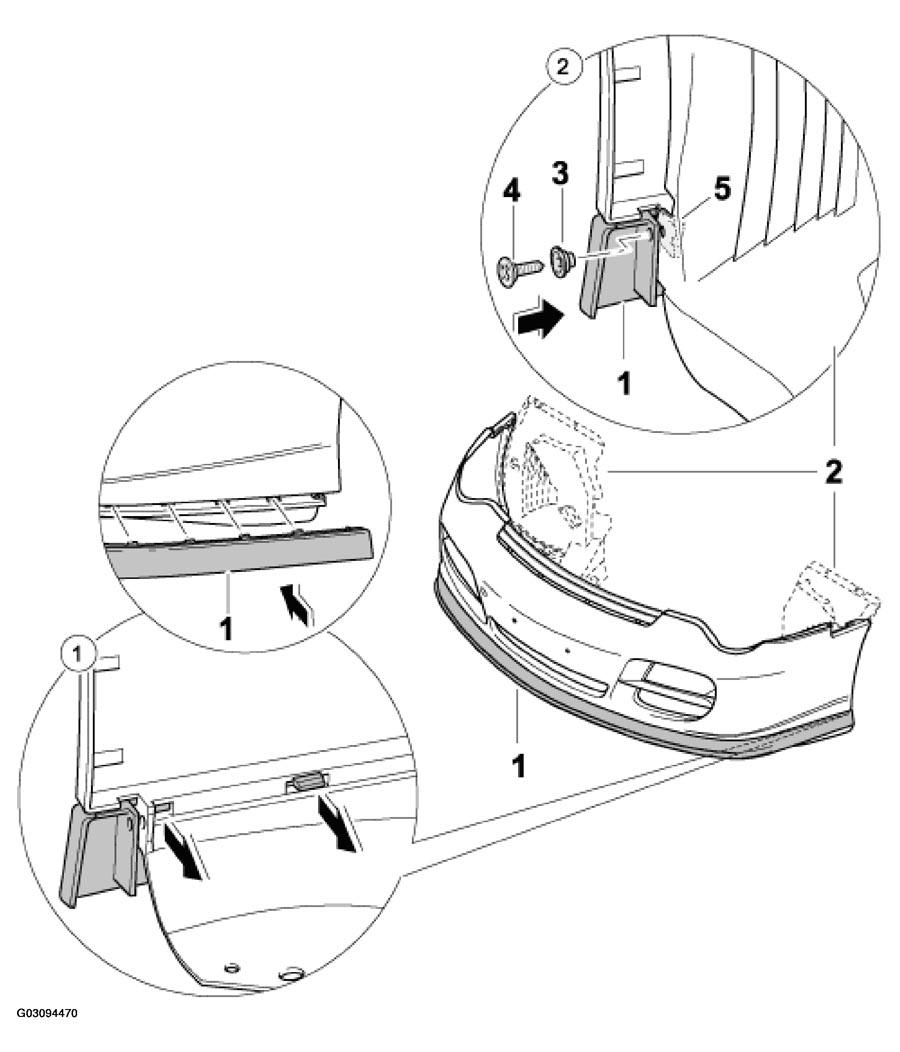

Fig 2: Installing Front Spoiler - GT2 (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT SPOILER INSTALLATION PROCEDURE AND INSTRUCTIONS - GT2 (1 OF 2)

No.	Procedure	Instructions
1	Fit front spoiler -1-	Insert the front spoiler -1-
2	Tighten front spoiler -1-	Place the sheetmetal nut -5-4-3-2-1-
