Installing inner sill

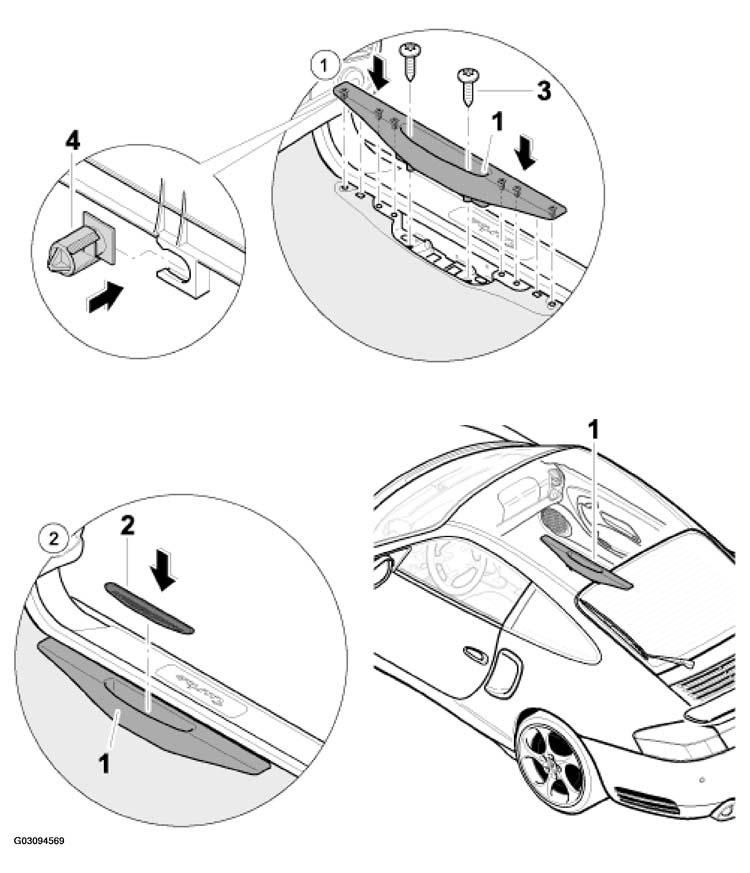

Fig 1: Installing Inner Sill (Passenger's Side)
G03094569Courtesy of PORSCHE OF NORTH AMERICA, INC.
INSTALLING INNER SILL (PASSENGER'S SIDE)

No. Procedure Instructions
1 Putting on sill -1-  Clip in new fastening clips -4-1-
2 Fastening sill -2-  Screw in fastening screws -3-2-
