Installing Sill Cover
INSTALLING SILL COVER
| No. | Procedure | Instructions |

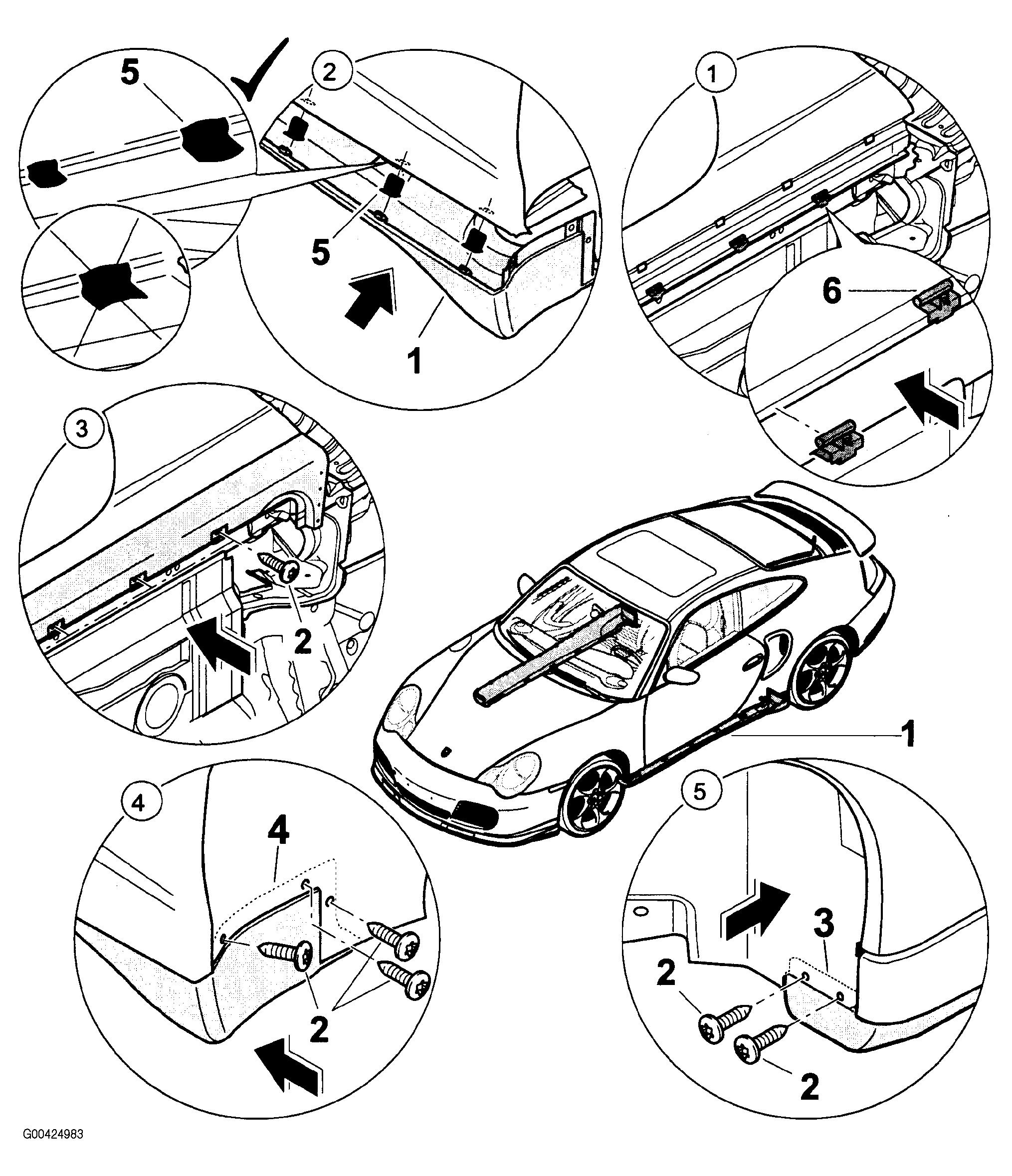

| 1 | Check U-clips and replace if necessary | Check U-clips -6- and replace if necessary. The U-clips must be fixed firmly on the rim of the lower side member. |
| 2 | Fitting grommets | All grommets are to be replaced before installing the sill cover -1- . Spray grommets with a lubricant, e.g. silicone spray for simplified mounting of the sill pegs -5- . |
| 3 | Fitting sill cover | Position sill cover -1- on the premounted grommets on the side member and tighten with fastening screws -2- . |
| 4 | Screwing on rear sill cover | Tighten rear sill cover and the rear wheel housing liner -3- using the fastening screws -2- . |
| 5 | Screwing in front sill cover | Tighten front sill cover and the front wheel housing liner -4- using the fastening screws -2- . |
