Installing Rear Spoiler

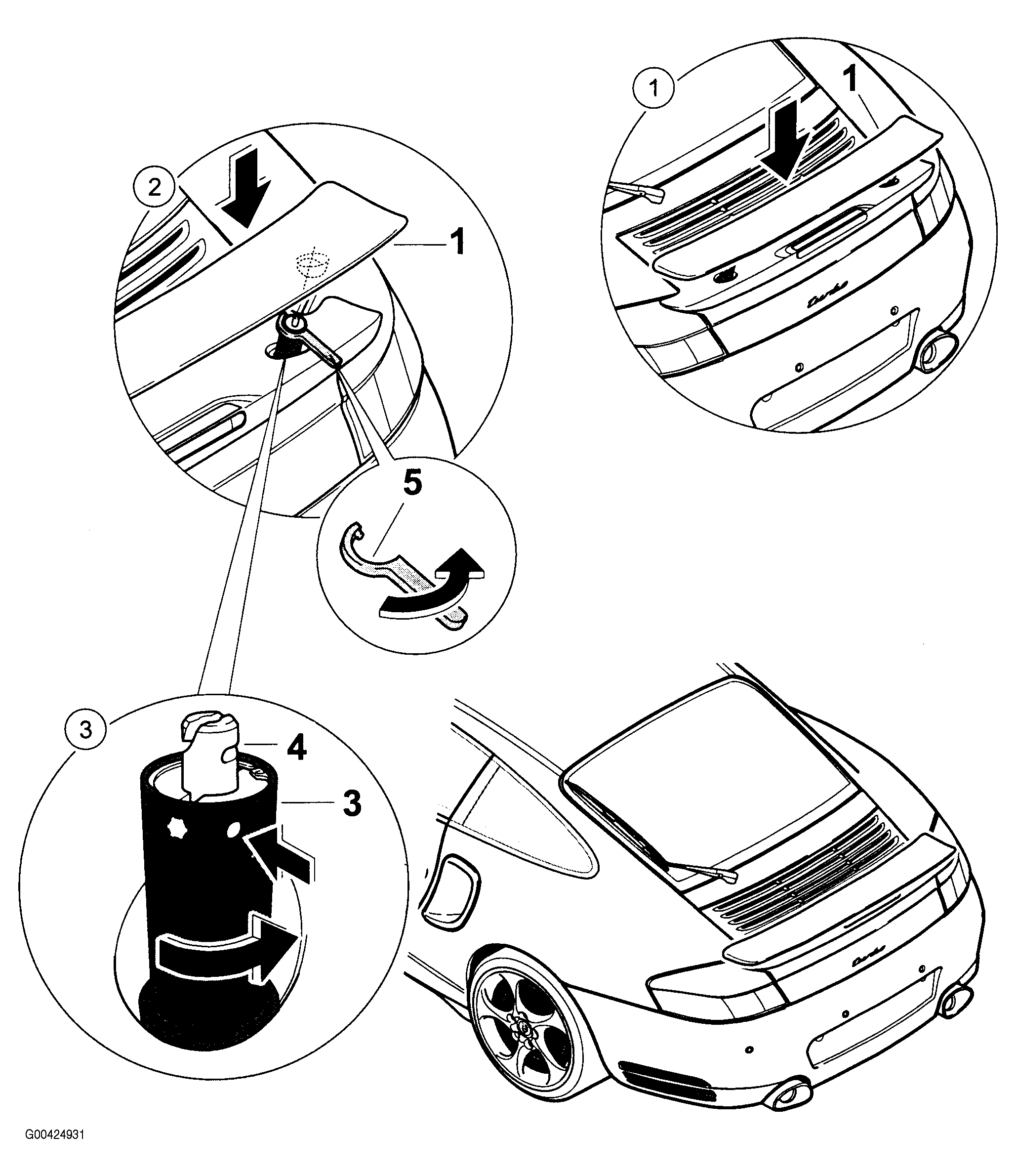

Fig 1: Installing Rear Spoiler

Courtesy of PORSCHE OF NORTH AMERICA, INC.

INSTALLING REAR SPOILER

No.	Procedure	Instructions
1	Put on spoiler -1-	Put spoiler -1- on both extension elements.
2	Lock spoiler -1-	Insert hook wrench into the bores and turn anti-clockwise until the closure peg engages in the lock of the spoiler, then turn anti-clockwise by a further 90° until the lock locks. Lock spoiler on both sides.
3	Cover bore of closure peg	Cover off bore of closure peg -4- by gently turning the outer tube -3- . Note: the outer tube -3- should be turned in an anti-clockwise direction only! The visible bores should lie in front in the direction of travel. The outer tube may need to be turned by a further 180°.
	Retract spoiler -1-	Retract spoiler manually using the rocker switch with the ignition switched on.
