Installing Pump
INSTALLING PUMP
| No. | Procedure | Instructions |
| Information: | The lines, banjo bolts and sealing rings included in the scope of replacement parts should always be replaced. | |

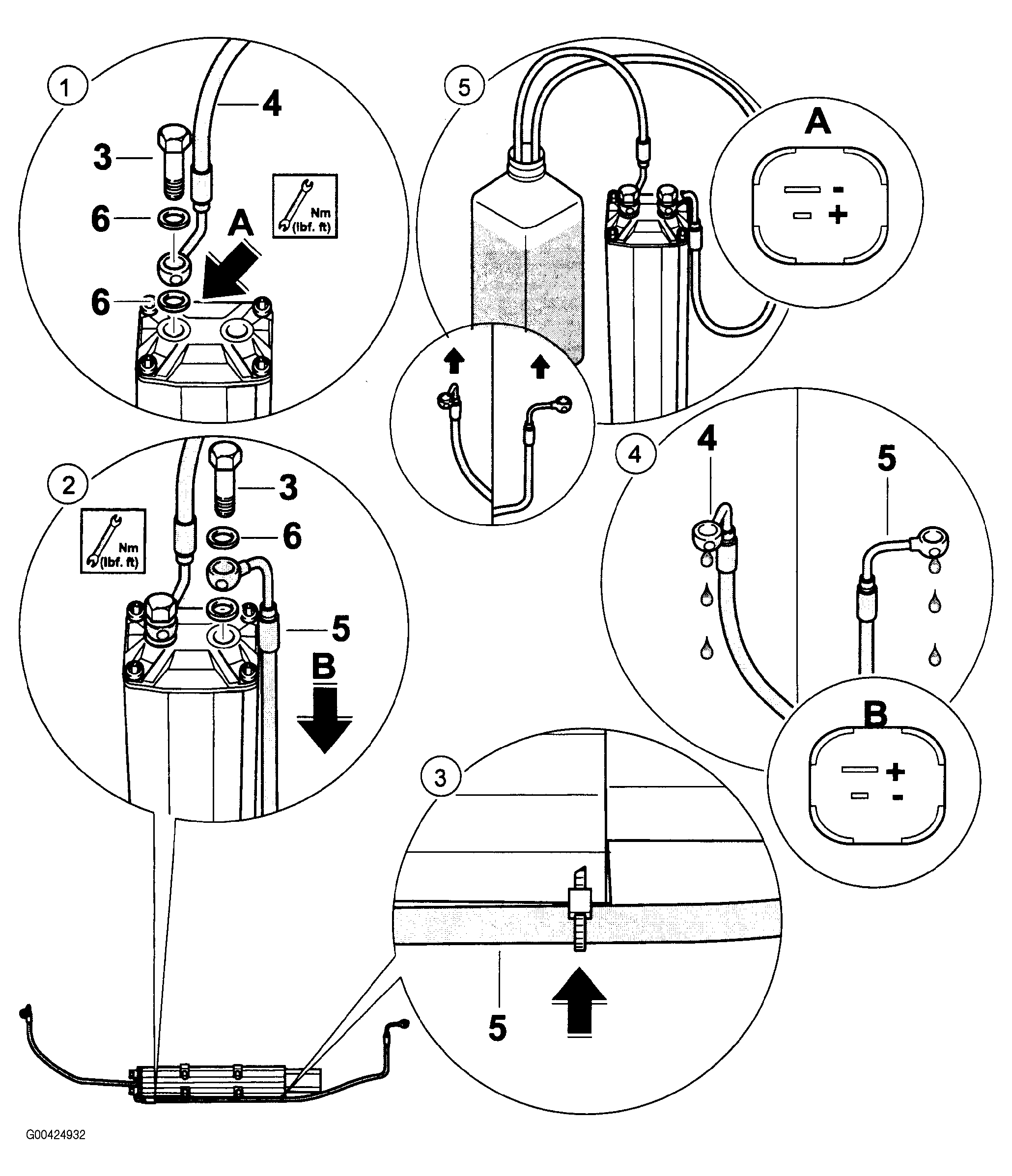

| 1 | Fitting short hydraulic line | Lay short hydraulic line -4- to the left leading from the pump unit -arrow A- , position the sealing rings -6- . Screw in banjo bolt -3- and tighten slightly. Tightening torque: 1 Nm (0.5 ftlb.) |
| 2 | Fitting long hydraulic line | Lay long hydraulic line -5- along the pump unit -arrow B- , position the sealing rings -6- . Screw in banjo bolt -3- and tighten slightly. Tightening torque: 1 Nm (0.5 ftlb.) |
| 3 | Affixing cable ties | Fasten long hydraulic line -5- to the pump unit with a cable tie -arrow- . |
| 4 | Pulling out pump unit | 1. Pull pump unit out so far that oil (Pentosin) emerges from both lines -4, 5- . 2. To do this, connect wide contact to +12 V, narrow contact ground (-) to the pump motor according to the polarisation arrangement -B- . |
| 5 | Inserting pump unit | 3. Dip the hydraulic line ends completely in oil (Pentosin). 4. Insert pump unit to the lower initial position. To do this, connect wide contact (-) to ground, narrow contact +12 V to the pump motor according to the polarisation arrangement -A- . 5. To avoid oil leaking out, hold the hydraulic lines pointing vertically upward after removing from the oil bath. |
| Installing hydraulic cylinder | Refer to INSTALLING HYDRAULIC CYLINDER or FILLING THE HYDRAULIC CYLINDER |
