Installing Hydraulic Cylinder
INSTALLING HYDRAULIC CYLINDER
| No. | Procedure | Instructions |
| Information: | The lines, banjo bolts and sealing rings included in the scope of replacement parts should always be replaced. | |
| Installing hydraulic line on the pump | Observe installation sequence of the hydraulic lines! The hydraulic lines must be mounted first to the pump unit and the pump motor must be extended and retracted. See INSTALLING PUMP . | |

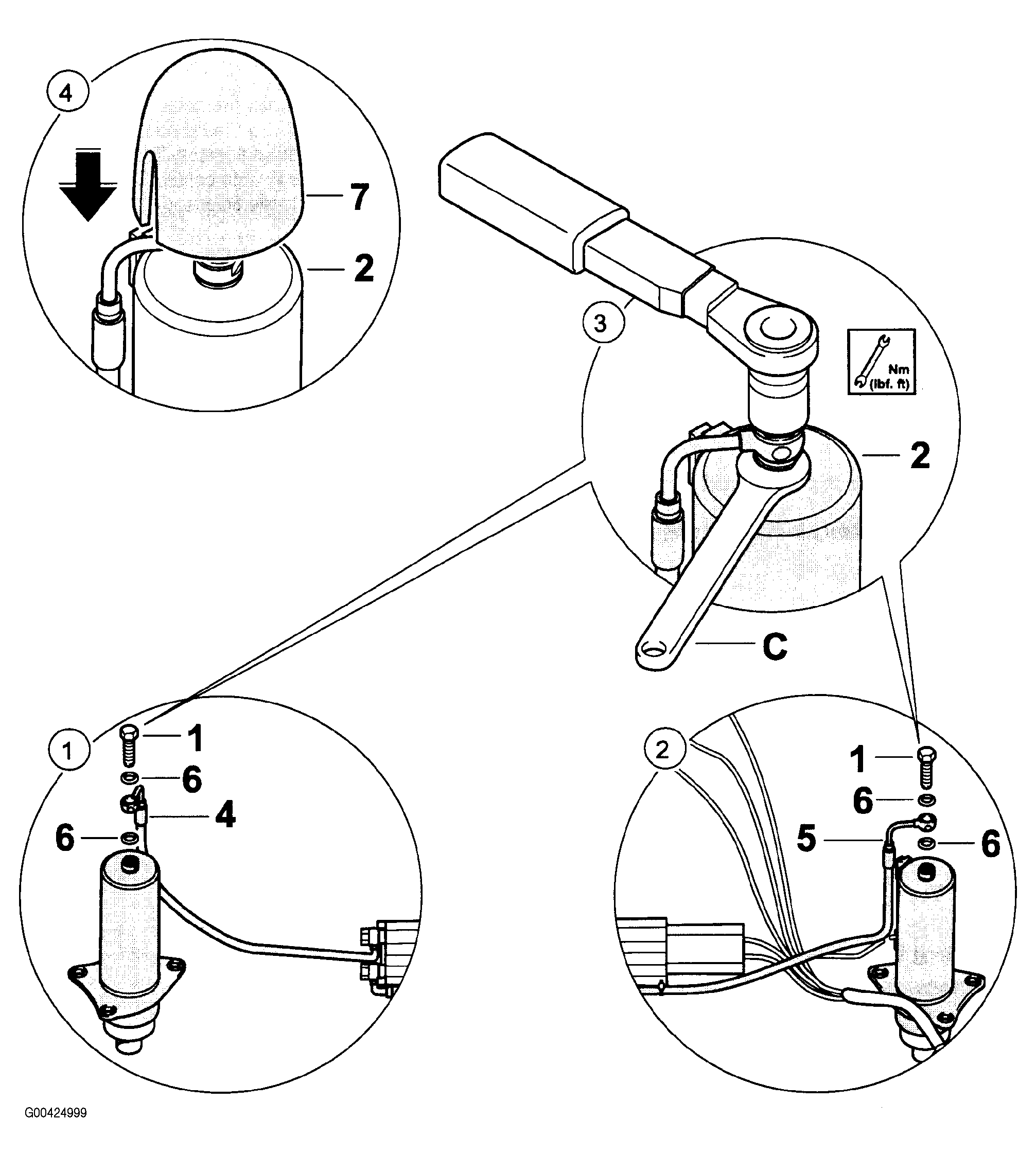

| 1 | Fitting short hydraulic line -4- . | Fit short hydraulic line -4- with the sealing rings -6- . Screw in short banjo bolt -1- . |
| 2 | Fitting long hydraulic line -5- . | Fit long hydraulic line -5- with the sealing rings -6- . Screw in short banjo bolt -1- . |
| 3 | Tightening short banjo bolt -1- with tightening torque. | Tighten short banjo bolt -1- , to do this, counter the hydraulic cylinder -2- with an open-ended wrench -C- . Tightening torque: 15 Nm (11 ftlb.) |
| 4 | Fitting covering caps | Push left and right covering cap -7- onto the hydraulic cylinder -2- . |
| Bleeding the pump unit | See BLEEDING THE PUMP UNIT . |
