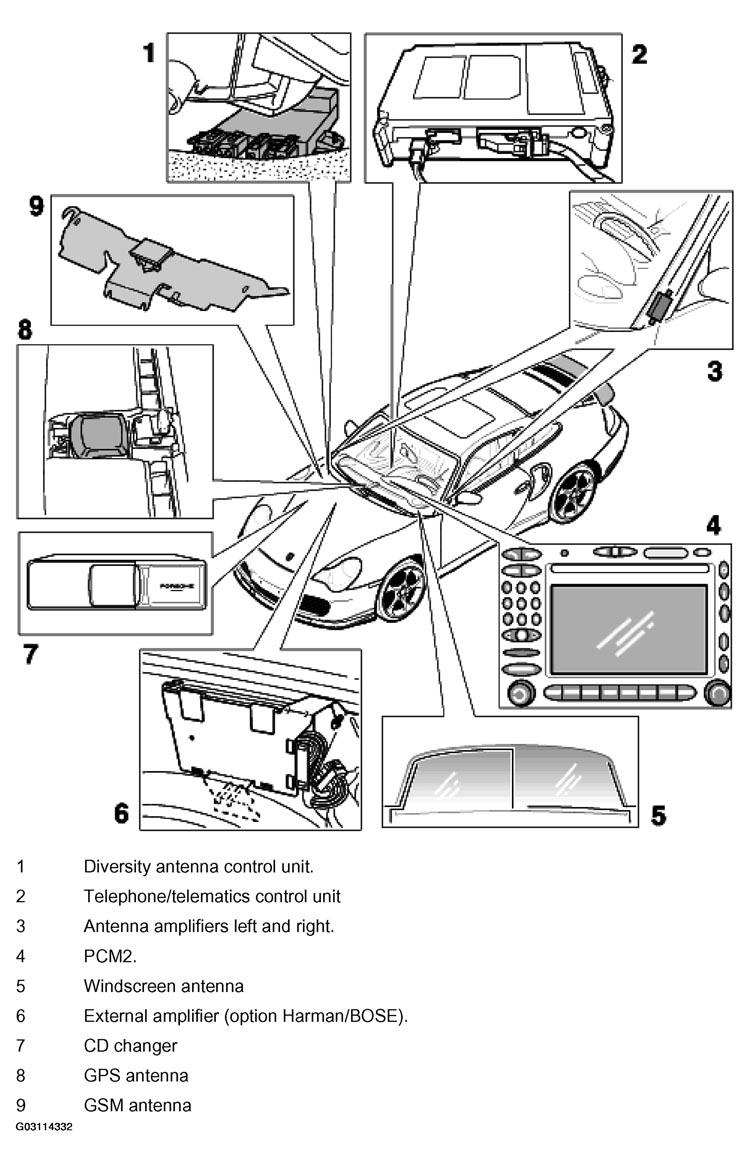

Component arrangement - external BOSE amplifier

Fig 1: Identifying External Bose Amplifier Component Arrangement

Courtesy of PORSCHE OF NORTH AMERICA, INC.

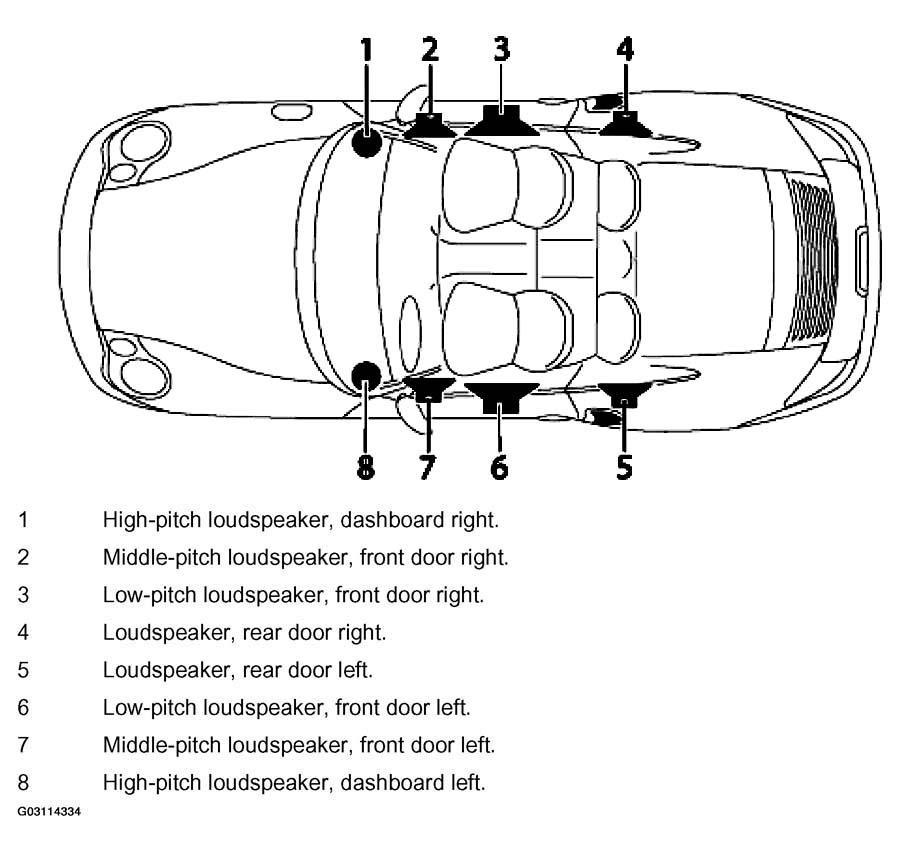

Loudspeaker basic system

Fig 2: Identifying External Bose Amplifier Loudspeaker Basic System Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

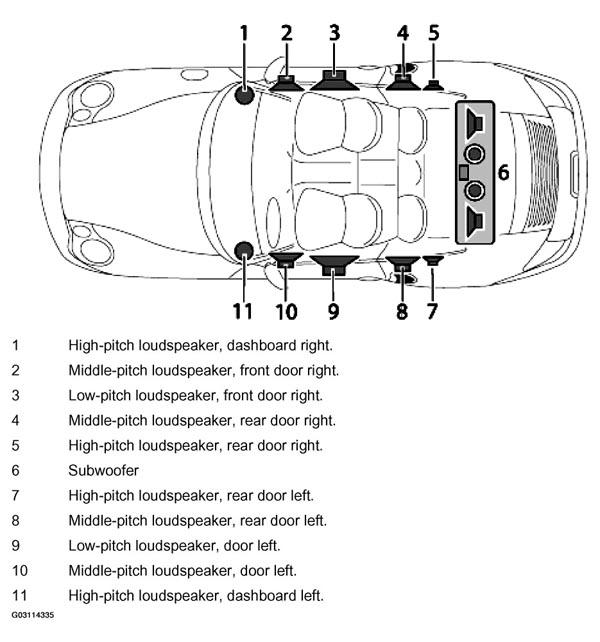

Loudspeaker sound package

Fig 3: Identifying External Bose Amplifier Loudspeaker Sound Package

Courtesy of PORSCHE OF NORTH AMERICA, INC.

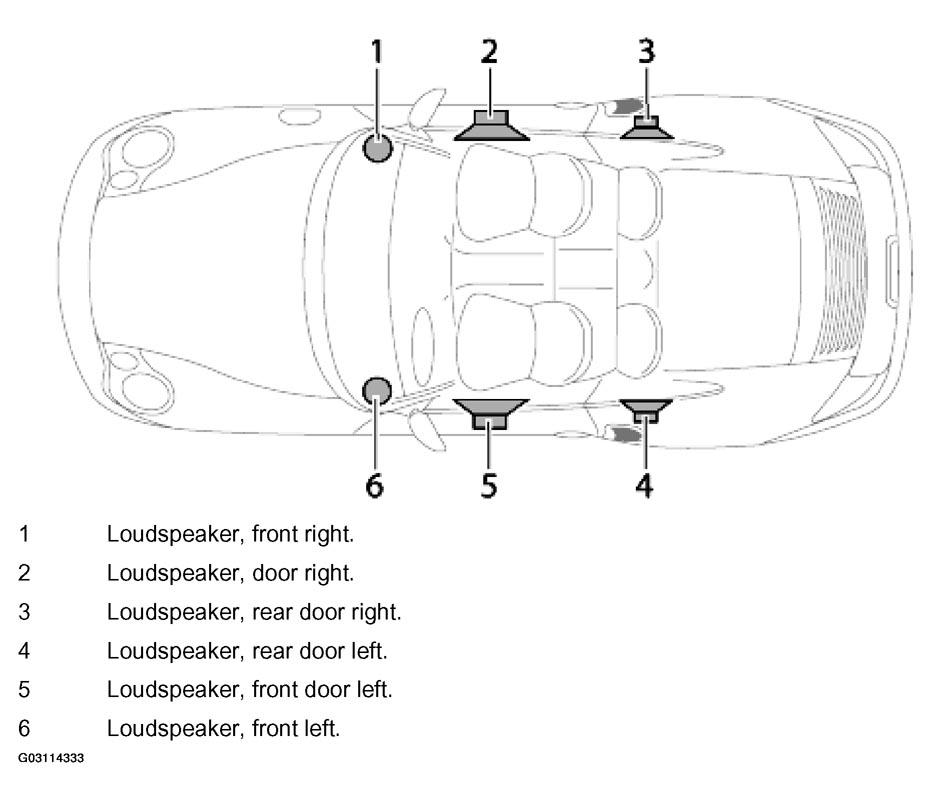

High-End loudspeaker

Fig 4: Identifying External Bose Amplifier High-End Loudspeaker Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.
