Radio, Navigation & Pcm Diagnosis - 911 Turbo (996)
>>
8004 PCM2 - gateway
>>
CAN comfort bus OFF
>>
Affected pin
Affected pin
PCM2 control module, plug E, yellow, pins 1 and 2

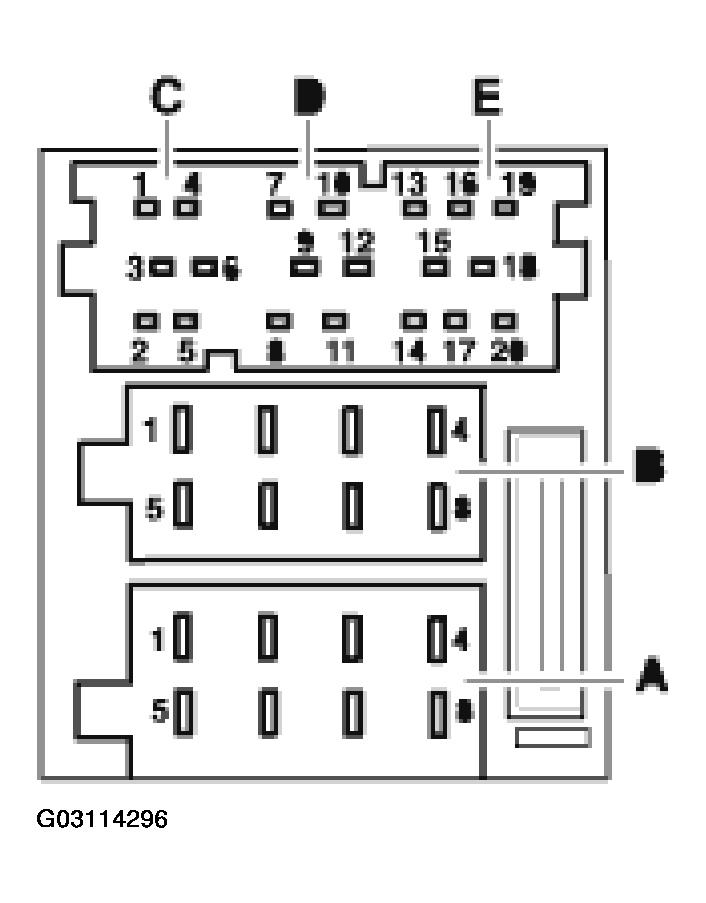

Fig 1: Identifying 8004 PCM2 Control Module, Plug E - Gateway Connectors
Courtesy of PORSCHE OF NORTH AMERICA, INC.
