8004 CDR23
>>
CAN comfort bus OFF
>>
Affected pins
Affected pins
CDR23 control unit, plug E, yellow, pins 1 and 2

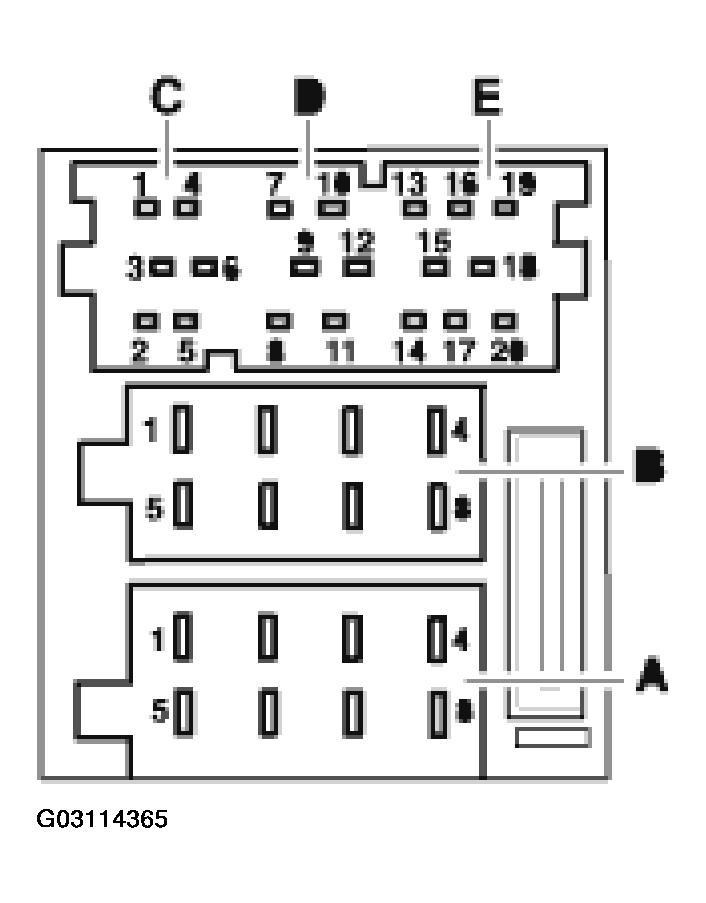

Fig 1: Identifying 8004 CDR23 Plug E Connector Pins
Courtesy of PORSCHE OF NORTH AMERICA, INC.
