Installing hall sender

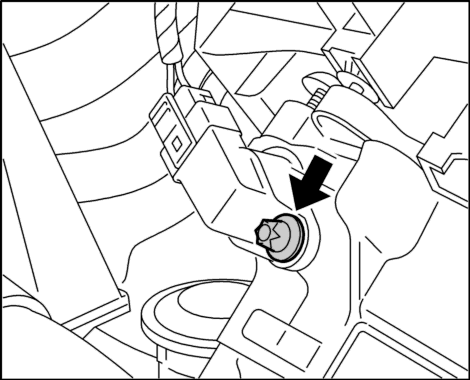

Fig 1: Fastening screw on hall sender
GP00009282Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Push the hall sender into the camshaft housing and tighten the fastening screw. → Tightening torque: 7.5 ftlb.

2. Push on electric connector. The connector must engage audibly.
