Tools and materials: Tools

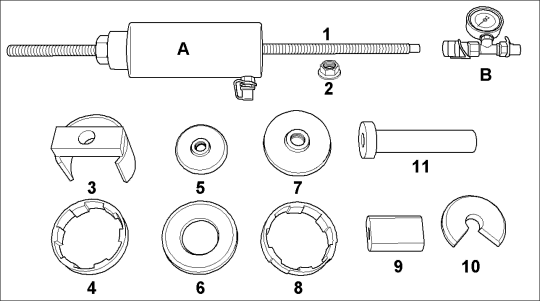

Tool overview for suspension subframe bearings assembly fixture T10301 .
-A- - → Hydraulic cylinder VAS 6178 (The hydraulic cylinder is used together with the → foot pump VAS 6179 and the → pressure gauge with connecting cable VAS 6179/1 -B- ). See Fig 1.
-1- - Threaded rod (Inserted into the tubular piston cylinder -A- ). See Fig 1.
-2- - Threaded nut (Screwed onto the threaded rod -1- ). See Fig 1.
-3- - Pipe (For pressing out the suspension subframe bearings). See Fig 1.
-4- - Ring (For pressing out the suspension subframe bearings). See Fig 1.
-5- - Press-out plate (For pressing out the suspension subframe bearings). See Fig 1.
-6- - Pressure piece (For pressing in the suspension subframe bearings). See Fig 1.
-7- - Press-in plate (For pressing in the suspension subframe bearings). See Fig 1.
-8- - Ring (For pressing out the suspension subframe bearings). See Fig 1.
-9- - Spacer sleeve (For pressing out the suspension subframe bearings together with pipe -3- ). See Fig 1.
-10- - Pressure piece (For pressing in the suspension subframe bearings). See Fig 1.
-11- - Spacer sleeve (For pressing in the suspension subframe bearings). See Fig 1.
