Subsequent work

1. Install brake disc and brake calliper. Refer to 465319 Removing and installing rear brake disc [9PAAD1 9PAAD7 9PAAE1 9PAAE7 9PAAF1 9PAAJ1] .

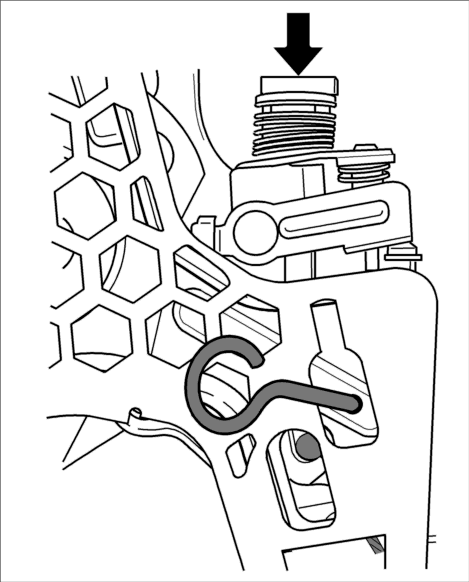

Fig 1: Adjustment device for foot-operated parking brake
GP00010562Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Pull the auxiliary pin out of the adjustment device.

3. Adjust the foot-operated parking brake. Refer to 468316 Adjusting the foot-operated parking brake [9PAAD1 9PAAD7 9PAAE1 9PAAE7 9PAAF1 9PAAJ1] .

4. Fit wheel. Refer to 44 05 19 Removing and installing wheel - as of MY 2003 (All Models) .

5. Install trim under instrument panel on driver's side. Refer to 70 19 19 Removing and installing trim under dashboard - as of MY 2003 (All Models) .

6. Install cover in the footwell. Refer to 70 22 19 Removing and installing cover under dashboard - as of MY 2003 (All Models) .
