46 83 56 Replacing brake shoes - as of MY 2003 (All Models): Replacing: Installing
CAUTION:
Risk of injury (e. g. crushing) when removing and installing springs.
- Danger of injury and damage.
- Springs can pop out.
- The edges of springs may be sharp.
→ Wear protective gloves and goggles.
→ Be very careful when working on the brake system.

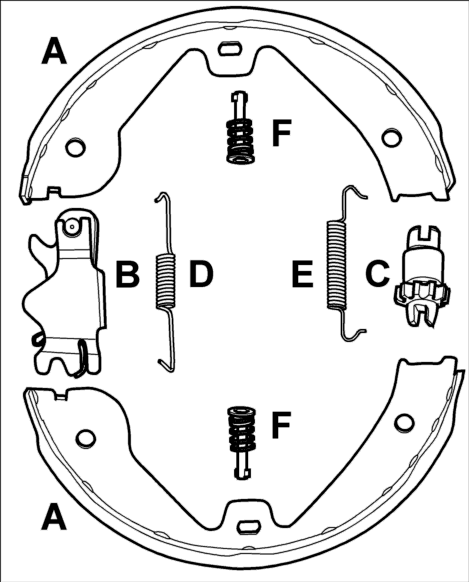

Installation is performed in reverse order.
Align the entire unit in the middle.
Observe correct tightening torques.
