Installing front brake cable

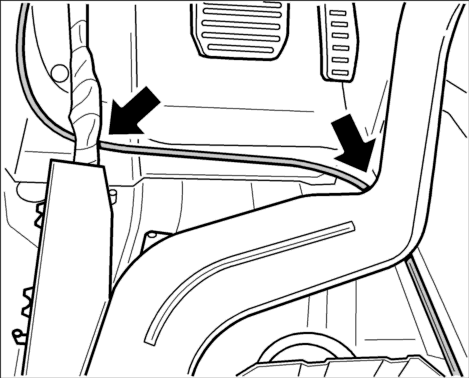

Fig 1: Brake cable routing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Lay the brake cable under the wiring harness -arrow- and under the air guide -arrow- . See Fig 1.

2. Fit the ball head to the latch on the actuating pedal. Make sure that the securing lug is not damaged.

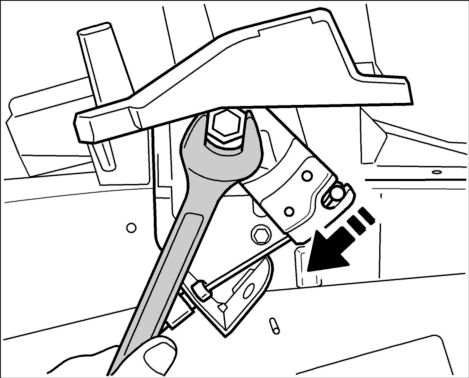

Fig 2: Turning deflector hexagon using an open-ended wrench

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Push the ball head into the latch on the deflector. To do this use an open-ended wrench (a/f 22) on the deflector hexagon and turn it until the end of the cable can be inserted. See Fig 2.

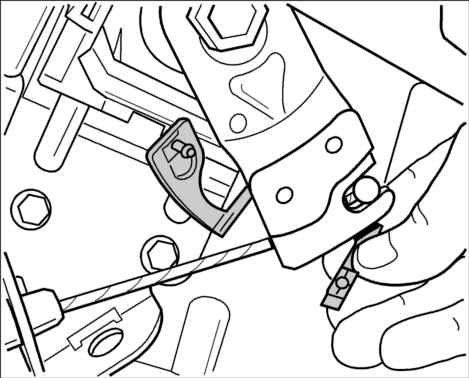

Fig 3: Engaging securing clip into bracket on deflector

Courtesy of PORSCHE OF NORTH AMERICA, INC.

4. Engage the securing clip into the bracket on the deflector and make sure it is fitted correctly. Observe the following note for this purpose: See Fig 3.

NOTE:

Damaged securing clips must be replaced. The brake cable can become detached if the securing clip is defective.
Pass securing clip behind brake cable.
Clip in securing clip -direction arrow- . See Fig 5.
Securing clip in end position. See Fig 6.

Fig 4: Brake cable securing clip

Courtesy of PORSCHE OF NORTH AMERICA, INC.

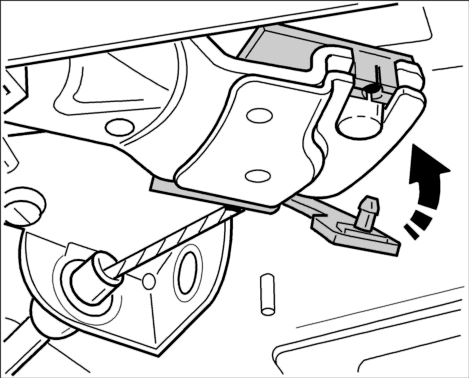

Fig 5: Engaging securing clip into bracket on deflector

Courtesy of PORSCHE OF NORTH AMERICA, INC.

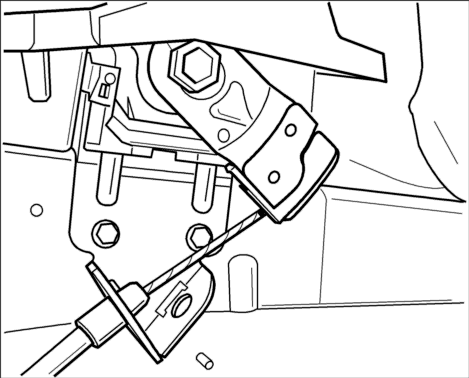

Fig 6: Identifying brake cable secured in deflector

Courtesy of PORSCHE OF NORTH AMERICA, INC.

5. Install cover of driver's footwell. Refer to 70 22 19 Removing and installing cover under dashboard - as of MY 2003 (All Models) . and lay the carpet.

6. Perform a function test.
